Quick Details

• Max.pressure of electrode:

  400KGF

• The flow of cooling water:

  6L/min

• Place of Origin:

  China

• Samples:

  Not Available

• Delivery Time:

  5-10 Days After Your Payment

• Packing:

  Carton Box, Plastic Bags, Wooden Cases Or As Your Requirement

• Delivery Port:

  Qingdao,Ningbo,Shanghai,Shenzhen

• Max. Production Capacity:

  1000sets

• OE Experience:

  No

Product Name:Automatic Seam Welding Equipment

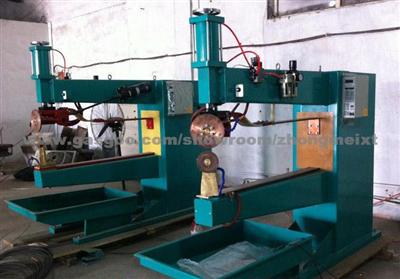

Automatic Seam Welding Equipment

Application

CHINA COAL

Product Description:

chinacoal2
m.chinacoalintl.com

Automatic Seam Welding Equipment


Features:
1.Adopt cylinder pressure, pressure adjustment is convenient and precise.
2.Adopt stepless adjustment speed drive of three-phase, it is easy to adjust the welding speed steadily
3.The active drive can be chosen upper or lower electrode, it is convenient for user to operate.
4.The main circuit adopts water cooling and high power SCR, quality is reliable, current output is stable.
5.The welder has two forms of horizontal welding and vertical welding , it is suitable for various workpiece welding.
6.Widely used in metal processing industry of hardware, home appliances,automblie, making pots and tin etc.
Use:
straight seam welding machine is very suitable for welding of basin, bucket, tin, box and thin-walled vessels seal welding.
Straight seam welding machine, frequency conversion seam welder
Horizontal straight seam welding machine
portable spot welding machine, butt welding machine, seam welding machine, automatic welding machine, capacitor energy-storing welding machine

Item Type	FN-35	FN-55	FN-75	FN-100
Rated input capacity	35KVA	55KVA	75KVA	100KVA
Rated input voltage	1-38V/50HZ	1-380V/50HZ	1-380V/50HZ	3-380V/50HZ
Rated load cycle	50%	50%	50%	50%
Max.input capacity	45KVA	55KVA	75KVA	110KVA
Max.short circuit current	6200A	11000A	16000A	26000A
Max.pressure of electrode	400KGF	600KGF	1000KGF	1000KGF
The flow of cooling water	6L/min	6L/min	8L/min	8L/min
Arm length	600mm	600mm	600mm	600mm
Electrode journey	80mm	80mm	80mm	80mm
Speed of welding	0.5-3m/min	0.5-3m/min	0.5-3m/min	0.5-3m/min
Weight	328kg	378kg	428kg	478kg
