Quick Details

• Electric Motor:

  370W

• Drum Capacity (L):

  100/125

• Place of Origin:

  China

• Delivery Time:

  5-10 Days After Your Payment

• Packing:

  Carton Box, Plastic Bags, Wooden Cases Or As Your Requirement

• Delivery Port:

  Qingdao,Ningbo,Shanghai,Shenzhen

• Max. Production Capacity:

  1000sets

• OE Experience:

  No

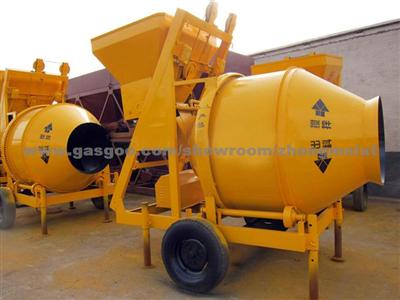

Product Name:Dry Mortar Cement Mixer

Dry Mortar Cement Mixer

Application

china coal

Product Description:

 Dry Mortar Cement Mixer Mortar cement mixers, Dry Mortar Cement Mixer, Cement Mixer, Product Introduction 1. Small in size
2. Manually operate and move easily
3. High speed and super quality for mixing
JH series portable concrete mixers have 3 types, electric motor driven, gasoline engine driven and diesel engine driven.
Most of the JH35 series mortar mixers adopt electric motors. Depends on the different clients' areas, it has different models. Main difference lies in the local electric voltage and frequency.
JH90 series and JH150 mortar mixers adopt diesel engine or gasoline engine. Main difference lies in the capacity, appearance and tyres.
JH series equipment can mix wet concrete, dry concrete, mortar, grout, etc. Manually operate and move easily. Quality reliable with long service life. Widely be used for the small or occasional construction projects.
Remark: Drum Capacity here means Discharging Volume.
Main Parameter

Model	Parameters
	Power		Drum Capacity (L)	Weight (KG)	Drum Thickness		Load per20GP (unit)
	Diesel Engine	Electric Motor			Top	Bottom
JH35Y	/	370W	100/125	55	1.2mm	1.8mm	132
JH35C	/	370W	100/125	55	1.2mm	1.8mm	132
JH35H	/	370W	100/125	55	1.2mm	1.8mm	132
JH35Z	/	370W	100/125	55	1.2mm	1.8mm	132
JH35J	/	370W	100/125	55	1.2mm	1.8mm	84
JH35S	/	370W	100/125	58	1.2mm	1.8mm	54
JH35L	/	370W	100/125	60	1.2mm	1.8mm	84
JH35B	/	370W	100/125	55	1.2mm	1.8mm	132

 CM2A Portable high output concrete mixer  Portable high output concrete mixer,output concrete mixer,CM2A concrete mixer
Product Introduction 1.Portable Concrete Mixer (cement mixer) is a device that combines cement, aggregate such as sand or gravel, and water to form concrete. A typical concrete mixer uses a revolving drum to mix the components.
2.For smaller volume works portable concrete mixer is often used so that the concrete can be made at the construction site, giving the workers ample time to use the concrete before it hardens.
3.Portable Concrete Mixer can be assembled with diesel engines, gasoline engines and electric motors  with capacities 260L, 300L,350L and 400L .
Main Parameter

Main Technical Parameter
Model	CM-2A  Portable Concrete Mixer
Charging Volume	260L	300L	350L	400L	500L
Reclaiming Volume	230L	270L	320L	370L	470L
Productivity	6-10m3/h	8-12m3/h	10-14m3/h	12-16m3/h	16-18m3/h
Speed of Mixing Drum	30r/min
Power Type	Diesel Engine/Gasoline Engine/Electric Motor
Engine Power	4HP	6HP
Drum Thickness	2.75-3.75mm
Transmission Way	Gear Wheel
Type of The Tires	4.00-8
Overall Dimension(LWHmm)	1700× 970×1600	1900×1070×1700	1900×1070×1750	1900×1070×1750	2000×1090×1115
Weight(kg)	300	320	330	340	400
Loading Plan	14 sets Per20gp, 28 sets Per 40HC for Concrete Mixer				12sets/20GP,26sets/40HC for Concrete Mixer
