Quick Details

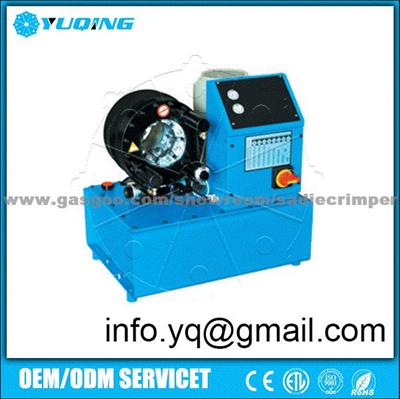

Product Name:YQB61 Hydraulic Hose Crimping Machine

YQB61 Hydraulic Hose Crimping Machine

Application

YUQING

Product Description:

Germany made Rexroth Valve and Pump, SIEMENS motor, Eaton Switch, SIEMENS electrical parts, USA made Mirco Controller.
Complete 11 die sets from 1/8 hydraulic hose to 1 1/2 4SP hydraulic hose.
Optional die sets up to 2 2SP ( Additional die sets required )
Powered by Hand pump P20HP, Powered by 12V/24V DC model P20DC is also available.
220V-480V 3 phase available, 220V 50hz and 60hz single phase available as well.
Large Crimping Machine up to 50 customization available upon request.


Crimping Range in inch   0.39-2.4
Crimping Range in mm    10-61
Crimping Force ton         140
Hydraulic hose               1 1/2 4SP
Crimping Accuracy          0.01mm
System Power             3KW by SIEMENS motor 3 phase / 220V
Control System          Precision Micro Dail
Crimping Unit (L*W*H)        400*800*530
Weight of the Crimping Unit    145 KG
Die sets included (11 sets in total)  10 12 16 19 23 27 31 36 41 54

We supply high quality standard hydraulic hose crimping machine with imported spare parts from US and Germany.It has wide crimping range up to 1200mm or could customize under your request. Cutting machine, skiving machine, high pressure test bench, marking machine are also in line of our business. ...[Read More]
