Floor Plates & Bed Plates

    • Application: Machine tools
    • OEM No/Model: T01
    • Market Type:After Market
    • FOB Price: USD RFQ
    • Other Price Term: CIF
    • Payment Terms: L/C, T/T
    • Samples: Not Available
    • Minimum Order: 1Piece/Pieces

Quick Details

  • Technics:

    Sand Casting

  • Standard:

    DIN

  • Material:

    Gray Cast Iron

  • Place of Origin:

    China

  • Samples:

    Not Available

  • Delivery Time:

    90-120 Days

  • Packing:

    Wooden Case

  • Delivery Port:

    Shanghai, China

  • Max. Production Capacity:

    600 Tons Per Month

  • Export Ratio:

    81% - 90%

  • OE Experience:

    No

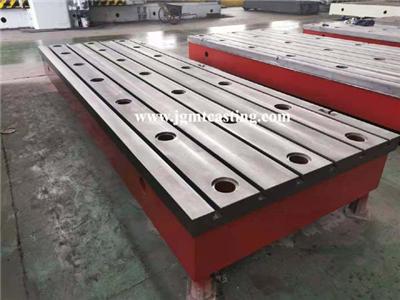

Product Name:Floor Plates & Bed Plates

Floor Plates & Bed Plates

Application

Machine tools

Product Description:

OEM No/Model: T01
Jinggong Cast Iron Floor Plates is made from high-strength grey cast iron. These plates offer flexible universal clamping possibilities for all types of work pieces.

Jinggong plates are specially configured to suit customer requirements. The design, dimensions, and loading capacity of the plate can be tailored to suit the size and weight of the work pieces to be clamped.

Standard sizes:


No.
Sizes (mm) Surface accuracy
(according to DIN876)
1 2000*2000*300 I/II/III
2 2500*2000*300 I/II/III
3 3000*2000*300 I/II/III
4 3500*2000*300 I/II/III
5 4000*2000*300 I/II/III
6 4500*2000*300 I/II/III
7 5000*2000*300 I/II/III
8 5500*2000*300 I/II/III
9 6000*2000*300 II/III
10 6500*2000*300 II/III
11 7000*2000*300 II/III
12 8000*2000*300 II/III
Other sizes and surface accuracy on request!
