Quick Details

• Samples:

  Charge

• Max. Production Capacity:

  15000 Square Meters Each Month

• OE Experience:

  No

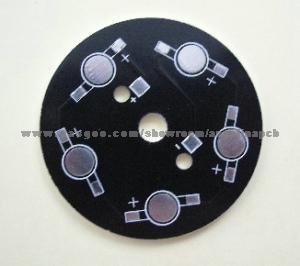

Product Name:Rigid Aluminum PCB 1.6mm

Rigid Aluminum PCB 1.6mm

Application

DADI Auto, Suzuki, Shanghai Maple

Product Description:

Rigid Aluminum PCB 1.6mm
We have been in the domestic PCB market since 2005.  We now have grown to the point that a number of foreign clients have ordered from us. All have come via word of mouth from our domestic clients in the past .  We have had the same staff for the last 7 years. We have just added a new sales force to deal with the international market.  We have been only doing international sales for about 9 months and the sales there are growing steadily with a number a repeat orders already. I would like togive you some insight into some FAQsthat have been asked:
1)      Layer: 1-4
2)      Board finished thickness: 0.4mm to 2.5mm
3)      Material: FR-4, CEM-1, Aluminum Based,(KB,SHENGYI)etc.
4)      Max. Finished board size: 1040mm by1249mm
5)      Min. hole size: 4mil (0.1mm)
6)      Min. traces width/space: 0.13mm/0.13*
7)     Surface finishing/treatment: HASL/Lead free HASL, Immersion Gold, Gold plating, Immersion silver, immersion Tin, OSP.
8)     Copper thickness: 0.5oz to 4oz.
9)      Solder mask color: Green/Yellow/ Red /Black/White/ Blue.
10)  Copper thickness in hole: >18µm
11)  Inner packing: Vacuum packing
12)  Outline tolerance: ±0.10mm
Hole size tolerance: PTH±0.05mm NPTH:±0.05mm.
13)  Quality ensure: RoHS
14)  Special requirements: Buried and Blind vias, impedance control, via plug, BGA soldering, gold finger.
15)  Profiling: Punching, Routing, V-cut, Beveling.
16)  Provides OEM services for all sorts of printed circuit board assembly as well as Electronic encased products. (With minimum quantity)
17) Lead time: It takes about 3 working days to make a prototype upon receiving your specifications.
18) Capability: 15,000 square meters per month

 *MAXIMUMS TO FIT YOUR NEEDS.
**It is important that we work from a GERBER FILE we can also use protel but it might delay the period of time for the quote and prototype.




We have been in the domestic PCB market since 2005.  We now have grown to the point that a number of foreign clients have ordered from us. All have come via word of mouth from our domestic clients in the past.  We have had the same staff for the last 7 years. We have just added a new sales force to deal with the international market.  We have been only doing international sales for about 9 months and the sales there are growing steadily with a number a repeat orders already. I would like to give you some insight into some FAQs that have been asked:

1)      Layer: 1-4

2)      Board finished thickness: 0.4mm to 2.5mm

3)      Material: FR-4, CEM-1, Aluminum Based,(KB,SHENGYI)etc.

4)      Max. Finished board size: 1040mm by1249mm

5)      Min. hole size: 4mil (0.1mm)

6)      Min. traces width/space: 0.13mm/0.13*

7)     Surface finishing/treatment: HASL/Lead free HASL, Immersion Gold, Gold plating, Immersion silver, immersion Tin, OSP.

We have been in the domestic PCBA market since 2005. We now have grown to the point that a number of foreign clients have ordered from us. All have come via word of mouth from our domestic clients in the past. We have had the same staffs for the last 12 years. We make our customer's needs and ...[Read More]

Company Profile:

• Main Product:

  PCB/ PCBA

• Business Type:

  Manufacturer

• Current Export Market:

  North America, Western Europe, Eastern Europe, Eastern Asia

Factory Profile:

• Number of Employees:

  51 - 100 People

• Shift:

  2

• Size of Factory In Square Meters:

  8000

• Years of OEM Experiences:

  9
