Quick Details

• Place of Origin:

  Jiangsu, China (Mainland)

• Delivery Time:

  0

• Packing:

  plywood cases & pallets according to quantity and customer request

• Delivery Port:

  Tianjin Port & Shanghai Port

• OE Experience:

  No

Product Name:Stainless Steel Flange ANSI, DIN, UNI, EN1092, BS, JIS

Stainless Steel Flange ANSI, DIN, UNI, EN1092, BS, JIS

Application

universal

Product Description:

Stainless Steel Flange
Size:1/2"~60"(DN15-DN1500)
Standard:ANSI, DIN, UNI, EN1092, BS, JIS
MOQ:1pcs

Stainless Steel Flange nge, DIN 2527 Carbon Steel PN16 SPECIAL FlangeDIN flange,  export to European, Japan, USA, Korea, Iran, UAE etc.

Standard:

ASTM A182, A105, ANSI B16.5, B16.47, B16.48, B16.36

DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642

DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631

DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637,

DIN2638, DIN2673

BS4504,

Types:

Welding Neck Flange, Slip on Flange, Threaded Flange, Socket Welding Flange, Blind Flange

PRESSURE GRADE:

ASTM B16.5: 150LBS, 300LBS,400LBS, 600LBS, 900LBS, 1500LBS, 2500LBS

DIN: 6Bar, 10Bar, 16Bar, 25Bar, 40Bar

SIZE:

1/2" to 60" DN10~DN1500

Standard:

ANSI B16.5, ANSI B16.47, B16.48, B16.36, MSS SP44

Types:

Welding Neck Flange, Slip on Flange, Threaded Flange,

Socket Welding Flange, Blind Flange, Orifice Flange,

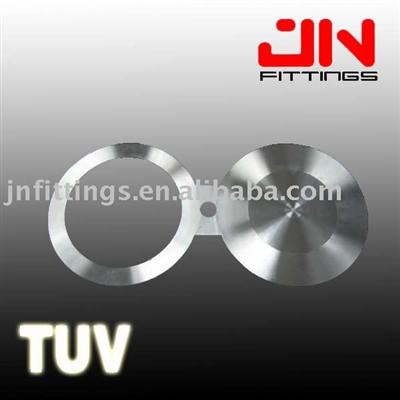

Ring Joint Flanges, Long Welding Neck Flange, Figure 8 Blanks

Standard:

BS 4504 SEC 3.1 : WELDING NECK FLANGE(111/134), HUBBED

SLIP ON FLANGE(112) ,HUBBED THREADED FLANGE(113),

LAPPED PIPE END FLANGE(133), PLATE FLANGE(101),LOOSE

PLATE FLANGE(102), LOOSE PLATE WITH WELD-NECK FLANGE

(104),BLANK FLANGE(105)

PRESSURE GRADE:

PN2.5 TO PN40

Standard:

BS 4504(PART-1) : WELDING NECK FLANGE, HUBBED SLIP-ON HUBBED THREADED, PLATE FLANGE,

LOOSE PLATE WITH WELD ON PLATE COLLAR, BLANK FLANGE

PRESSURE GRADE:

PN2.5 TO PN40

Standard:

BS1560 : WELDING NECK FLANGE, SOCKET WELDING FLANGE, SLIP-ON BOSS FLANGE, BLIND FLANGE,

SCREWED BOSS FLANGE, LAPPED FLANGE.

PRESSURE GRADE:

150 , 300 , 400 , 600 , 900, 1500 , 2500

Standard:

BS 10 : WELDING NECK FLANGE, PLATE SLIP-ON FLANGE, SCREWED BOSS FLANGE, SLIPON BOSS FLANGE, BLIND FLANGE

TYPE:

Table: D, E, F, H

SIZE:

1/2" NB TO 48"NB

STANDARD:

JIS Flanges

PRESSURE GRADE:

5K 10K 16K 20K 30K

SIZE:

DN10~DN1500

MATERIAL:

Carbon Steel:

ASTM A105, ASTM A350 LF1,LF2, CL1/CL2, LF3 CL1/CL2;

Stainless Steel:

ASTM A182 F304/304L, F316/316L, F316H,F316Ti, F321,F310, F312

JN PIPING & EQUIPMENT CO., LTD. is specialized in producing buttwelding fittings and forged flanges with stainless steel, duplex steel, carbon steel, alloy steel, low temperature steel and stainless steel composite material.
Founded on April 6th, 2006, started producing all ...[Read More]
