Quick Details

• Delivery Time:

  Normally 10-15 Days

• Packing:

  Carton

• Max. Production Capacity:

  250000pcs/Day

• OE Experience:

  No

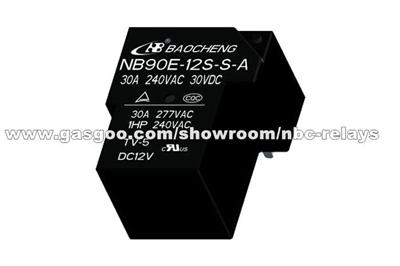

Product Name:NB90E Relay

NB90E Relay

Application

all

Product Description:




RELAY TYPE: NB90 Relay

Baocheng export excellent power relay, telecom relays and automotive relays.



40A switching capability

Compact structure

Dielectric strength between coil and contact 2.5KV,

max.4KV

NO,NC,NO&NC contact form available

Option for sealed and open type

UL insulation grade: Class F

Environmental friendly product

Outline dimension: 32 x 27.2 x 20mm

Baocheng hot selling power relays, telecom relays, automotive relays and latching relays.

Contact Ratings
Contact Form:	1A, 1B, 1C
Contact Material:	AgCdO, AgSnO2
Contact Load Capacity:	1A:40A/240VAC,30VDC
	1B:40A/240VAC,30VDC
	1C:40A/240VAC,30VDC
Max. Switching Current:	40A
Max. Switching Power:	9600VA/1200W
Mechanical Endurance:	1*107OPS
Electrical Endurance:	1*105OPS



Technical Ratings
Insulation Resistance:	1000MΩ
Dielectric Strength(Between coil&contact):	2500VAC
Operate Time (Max.):	15ms
Release Time (Max.):	10ms
Ambient Temperature:	-40 ~ 85/105
Terminal Type:
