Product Name:Circuit Breaker

Circuit Breaker

Application

General

Product Description:

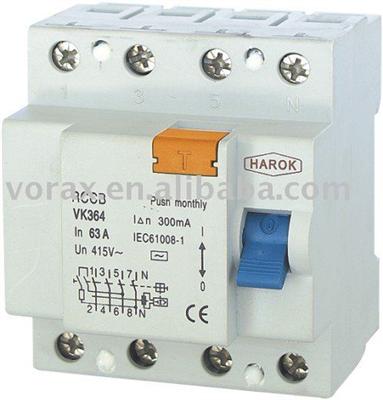

VK360 Residual Current Circuit Breaker have CE approval,novel structure,reliable performance,high breaking capacity.

VK360 Residual Current Circuit Breaker is in according with standards of VDE 0664,IEC1008 and BS4293 ETC,applying to the circuit of AC 50/60Hz,240V two phase,415V four phases and below it for industry and mining enterprise,building trade,commerce and family prevent electric fire and personal casualty accident caused by personal electric shock of leakage of electrified wire netting,this RCCB is a currentoperated ,fast leakage protector of pure electriomagnetic type,which can break off fault circuit auxiliary power and high working reliability(EN61008) VK360=DLF360=F360

Ultimate short-circuit breaking capacity(Inc):6000A

   Type

         VK360

   Number of poles

         4P

   Rated Current(In)

         6A,10A,16A,25A,32A,40A,63A,80A,100A

   Rated residual operating current( In)

         10mA,30mA,100mA,300mA

   Rated residual non-operation Current( Ino)

         0.5I n,5I n

   Rated Voltage(Un)

    AC    2P: 230/240V    4P: 400/415V

   Residual operating current scope

         0.5I n~1I n

   Residual current off-time

         ≤0.1s

   Type

         A,AC

   Ultimate short-circuit breaking capacity (Inc)

         6000A

   Endurance

         ≥4000

   Terminal protection

         IP20
