Quick Details

• Place of Origin:

  Guangdong China (Mainland)

• Brand Name:

  Germid/ oem /odm

• Model Number:

  EV-043LA-1080P

• Type:

  Interior Mirror

• Function:

  GPS tracker

• Product name:

  Ambarella A7 full HD DVR mirror

• Adjust the Angle:

  automatic control

• Certification:

  E-MARK

• color availbale:

  black

• Type:

  Car Interior Rearview Monitor

• Shell material:

  PC alloy

• Screen Size:

  4.3 inch HD TFT LCD Screen

• Placement:

  windscreen/ sunvisor

• Export Markets:

  Global

• Package:

  White Box(OEM)/Carton Box

• Place of Origin:

  Guangdong China (Mainland)

• Packing:

  Unit Dimension (L*D*H) 26*4.5*8 Qty per Export Carton 10pcs Unit Packing: (L*W*H) 29*13.5*9cm Export carton (L*W*H) 48*31*28.5cm Unit Packing (G.

• Delivery Port:

  Shenzhen

• OE Experience:

  No

Product Name:Ambarella A7 full HD DVR mirror GPS tracker parking mode G-sensor

Ambarella A7 full HD DVR mirror GPS tracker parking mode G-sensor

Application

all

Product Description:

Product Description

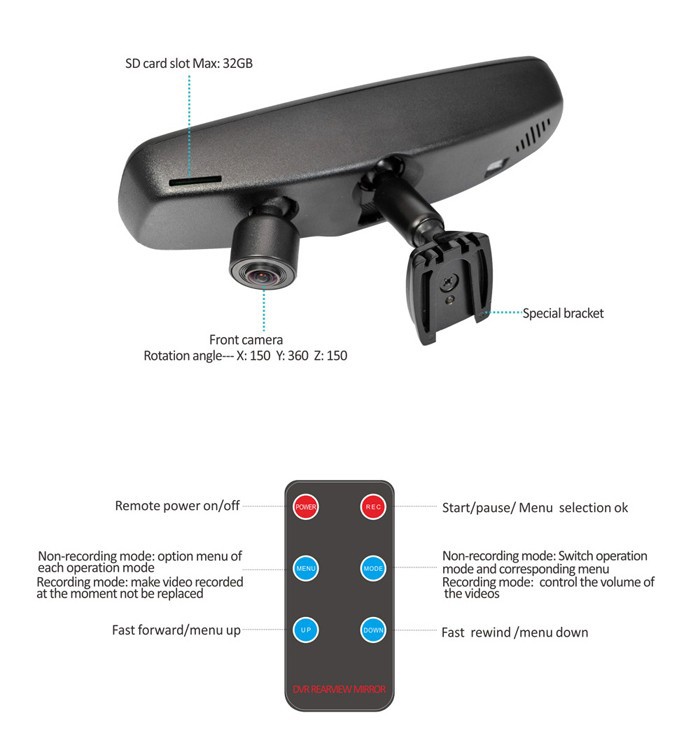

  Ambarella A7 full HD DVR mirror GPS tracker parking mode G-sensor

Item No.	EV-043LA-1080P
Item name	1080P Full HD Dual Camera Mirror DVR
Screen	4.3" LCD Screen
Lens	Front 140 degree,rear 120 degree view angle
Sensor	1.3Mega Pixel 1/4 CMOS Sensor,8MP photo pixel
CPU chip	Ambarella A7-50
Video Resolution	Front:1080P/720P, Rear: 480P(VGA)
Video Format	NTSC/PAL
Photo Format	JPEG
Media Storage	External TF card up to 32GB (TF Card is NOT included)
Microphone	Built in microphone/speaker
Interface	AV-IN, ,TF Card
Date setting	yy/mm/dd, hour/min/sec
Language	Chinese,English,French,German,Italian,Portuguese,Russian,Spanish,Japanese,Korean
Operating Temp	0 鈩?/span> ~ +65 鈩?/span>
Power	DC 12V,2A
Body Weight	/ 1.5kgs
Gift box size & Weight	49*28*30.8mm / 1.7kgs

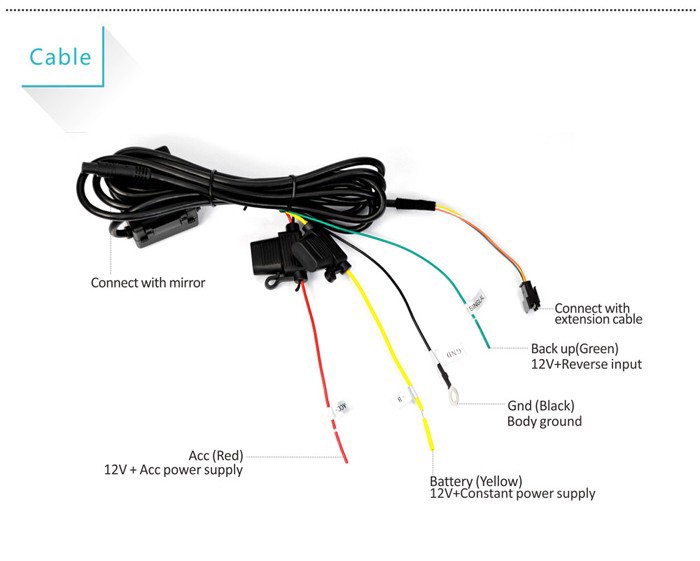

Package	1pcs mirror 1pcs wire harness 1pcs cable tie 1pcs user manual 1pcs remote control





Specification of Camera:

Image device: 1/4-inch colour vc0702
TV system: NTSC
Resolution: 480 TV lines
Electric Shutter: NTSC :720Lines.25Field/sec
Effective pixels: NTSC: 720X 480
Minimum illumination: 0.3Lux
Viewing angle: 170 degrees (diagonal)
S/N ratio: >48dB (AGC-OFF)
Video output: RCA connector, 1.0vp-p, 75ohm
Current consumption: ≤120mA
Power supply: DC8V-12V
Operating temperature: -30 to 65 degrees centigrade, RH95% Max.
Storage temperature: -35 to 70 degrees centigrade, RH95% Max.
Other items: automatic white balance, AGC and BLC
Water-proof: Yes, to IP68 standard





Our Services

One - stop Services:

1. One-stop services from original design or ideas to finished product.
2. 24 months warranty guarantee for normal use.
3. Any questions on our products or services, please feel free to contact us, we will solve ASAP.
4. If there are any damage or lost caused at our side, we will refund your payment, resend goods or make other compensation.



1. Tracking number will be emailed to you once we have shipped your order. If there is any delay, it may be caused by bad weather or custom inspection. If you still can not receive the item within 20 DAYS, pls contact us.
2.We try our best to make you get desired products as soon as possible. In case you receive wrong products due to shipping error, please contact us for exchange or refund. If it's damaged , please refuse to accept and contact us as soon as possible.
3.We are not responsible for wrong or undeliverable address. Please provide us your full address with Telephone number and make sure your shipping address is correct and deliverable.If you need to change your address, please change it in PayPal first before you pay.

Company Information

Our advantages:

1.Focus on wireless communication with more than 9years experiences.
2.Powerful R&D team with experienced engineers.
3.Our own factory for manufacturing chips, integrating and assembling.
4.Complete Solution hardware,software and mobile APP.
5.OEM,ODM acceptable.

With products and solutions tailored to commercial, industrial and residential markets, Global carMedia has today grown into a market leader with many experienced engineers in the competent R&D center, and products sold to worldwide.



We, Global carMedia, not only seek to build a brand, but establish a philosophy of life along the process as well. We sincerely hope that by setting up the standard of top quality with tangible price, we can help restore the true value of a commercial product, and by doing so create a better life for everyone.

FAQ

 What is the recording function?

Full format HD multimedia (1080P)
Wide angle 140 degree High Definition front camera
Automatic record after car is started
Seamless cyclic recording
Built in microphone and HIFI speaker
Built-in G-sensor
Recycle recording
Motion detection
Parking mode recording for 12 hours after engine is off, and use not more than 5% of your car battery
