Quick Details

• Place of Origin:

  Guangdong China (Mainland)

• Brand Name:

  Germid/OEM/ ODM

• Model Number:

  AK-043LAB

• Type:

  Interior Mirror

• Function:

  bluetooth handsfree car kit

• Product name:

  Germid Rear View Mirror Monitor

• Adjust the Angle:

  automatic control

• Certification:

  FCC,C-TICK, E-MARK, CE etc

• color availbale:

  black

• Type:

  Car Interior Rearview Monitor

• Shell material:

  PC alloy

• Screen Size:

  4.3 inch HD TFT LCD Screen

• Placement:

  windscreen/ sunvisor

• Package:

  White Box(OEM)/Carton Box

• Brand Name:

  Brand Name

• Place of Origin:

  Guangdong China (Mainland)

• Packing:

  Unit Dimension (L*D*H) 26*4.5*8 Qty per Export Carton 10pcs Unit Packing: (L*W*H) 29*13.5*9cm Export carton (L*W*H) 48*31*28.5cm Unit Packing (G.

• Delivery Port:

  Shenzhen

• OE Experience:

  No

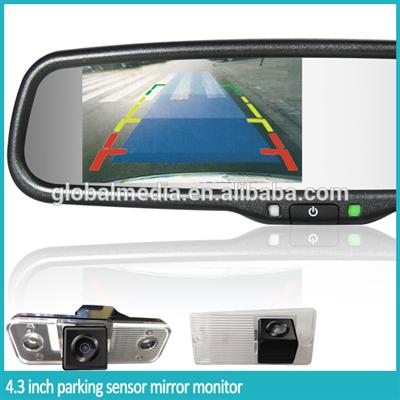

Product Name:Germid Rear View Mirror Monitor with 4.3 inch auto brightness and car backup camera display

Germid Rear View Mirror Monitor with 4.3 inch auto brightness and car backup camera display

Application

all

Product Description:

Product Description

Germid Rear View Mirror Monitor with 4.3 inch auto brightness and car backup camera display

1. Screen: 4.3 inch TFT LCD (Digital panel). Most suitable for the safe use of reversing rear;
2. Smart& Easy touch screen buttons control
3. Resolution: 480 (H) × RGB × 272 (V).
4. Display format: 16: 9 (4: 3 mode switchable)
5. Power Consumption: 1.5W (Working); 0.4W (Standby)
6. Power Supply: DC 12V
7. Power memory function & Low current consumption
8. Input: 2 video input (AV1 to DVD etc.; AV2 to Reverse camera)
9. Automatic activation when select reverse gear
10. Signal format: PAL / NRSC / AUTO.
11. Brightness: 350 CD /aqure meter.
12. Contrast ratio: 400:1
13. OSD Menu: Available
14. Unique Replaceable Metal Bracket with tight fitting and changeable base for all popular cars
15. Hand-free Bluetooth Function, auto-dimming, temperature, compass, parking sensor, parking camera (Optional)



Specification of Camera:

Image device: 1/4-inch colour vc0702
TV system: NTSC
Resolution: 480 TV lines
Electric Shutter: NTSC :720Lines.25Field/sec
Effective pixels: NTSC: 720X 480
Minimum illumination: 0.3Lux
Viewing angle: 170 degrees (diagonal)
S/N ratio: >48dB (AGC-OFF)
Video output: RCA connector, 1.0vp-p, 75ohm
Current consumption: ≤120mA
Power supply: DC8V-12V
Operating temperature: -30 to 65 degrees centigrade, RH95% Max.
Storage temperature: -35 to 70 degrees centigrade, RH95% Max.
Other items: automatic white balance, AGC and BLC
Water-proof: Yes, to IP68 standard



For more information, please visit here:

Packaging & Shipping

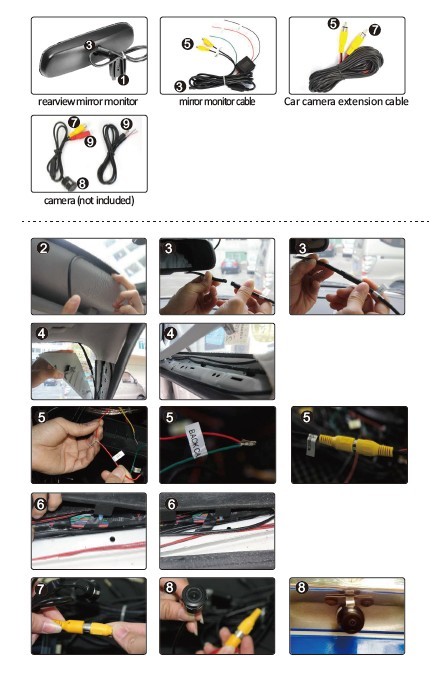

Package Content:

1. MIRROR
2. CABLE
3. ACCESSORIES
4. USER MANUAL
5. CAMERA(OPTION,if you buy our camera)

we have the brackets for almost all cars, Pls send us the picture of your bracket for our final confirmation. Because we're responsible to you, we just want to avoid any mistake and offer your the service and product that you're satisfied with.

Company Information

Company information :

Founded in 2007, GERMID has been devoting in developing and manufacturing car interior rearview mirror. Currently,We are one of the most professional manufacturers of car interior rearview mirror . With an annual output by 1.2 million, GERMID is the OEM supplier of car interior rearview mirror for car factories such as TOYOTA,FIAT etc. GERMID has been approved of TS-16949 Quality System. With the continuous improvement of the quality , we will rank in the World-class OEM suppliers of auto rearview mirror and root in this industry gradually.

FAQ

*What is auto adjusting brightness?

The brightness(only for the 4.3"display screen,not for the entire mirror) will change automatically according to the environment light. When the environment light become stronger, the screen brightness will increase accordingly to ensure more distinct image in strong light. When the environment light become weaker, the screen brightness will decrease in order to protect eye against being stimulated due to over-brightness of the screen.



* Which Mirror bracket (Mount) works for my car?
We have many OE style brackets for most of the popular cars (See below compatible vehicles list) but we highly suggest you to send us a photo of your original bracket bottom and tell us your car makes and model. then we will confirm to you which bracket NO. is matched for your car, and make sure you leave us message about bracket NO. when ordering, other wise, we will send you bracket as default
