Quick Details

• Place of Origin:

  Guangdong China (Mainland)

• Brand Name:

  OEM or GERMID or NETURAL BRAND

• Model Number:

  EK-043LA

• Type:

  Interior Mirror

• Function:

  Auto dimming prking sensor HDMI automaticlly brightness adjustment

• video input:

  2 ways AV-IN

• certified:

  TS16949/E-mark/ROHS/FCC/CCC

• oem factory:

  in shenzhen

• hot sales:

  global

• Car Make:

  any car

• Screen Sizs:

  3.5 inch

• Package:

  White Box(OEM)/Carton Box

• car camera:

  High Definition CCD camera

• Brand Name:

  OEM/ODM/Neutral

• Type:

  Car Interior Rearview Monitor

• Place of Origin:

  Guangdong China (Mainland)

• Packing:

  Unit Packing: (L*W*H) 29.5*8.5 * 3.5 CM Export carton (L*W*H) 35.5*32.7*37.6CM

• Delivery Port:

  shenzhen/hongkong

• OE Experience:

  No

Product Name:4.3 inch mirror link lcd monitor with 2 video input Information Synchronization automatic car parking system rearview Mirror

4.3 inch mirror link lcd monitor with 2 video input Information Synchronization automatic car parking system rearview Mirror

Application

all

Product Description:

4.3inch  mirror link lcd monitor with 2 video inputs automatic car parking system rearview Mirror with Backup Camera



 Specifications

1. Information Synchronization with the Android or ISO devices;
2. Audio & HDMI output;
3. Ultral-high brightness monitor;
4. OEM replacement model;
5. Auto backup camera display;
6. Auto brightness adjustment;

7.high resolution 4.3inch LCD display
8. E-mark, FCC, ROHS, C-Tick ,CCC etc
9. material: ABS+PC

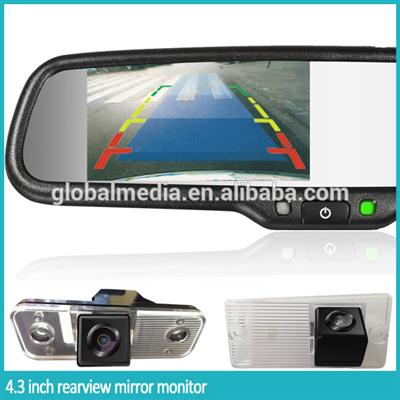

 4.3 Inch rearview mirror monitor
>  Automatic activation when you select reverse gear
>  High resolution 4.3 " LCD display
>  Looks and functions like a normal rear-vison mirror
>  Auto brightness adjustment
>  Uses existing mirror mount in most vehicles.
>  Rear Camera Display



Technical Specification
1.Operating Voltage9.0 -16.0 Vdc
2.Operating Temperature-40oC ~ +85oC
3.Storage Temperature-40o C~ +100oC
4.Maximum Current<450 milliamps
5.High Reflectance>70%
6.Low Reflectance6~10%
7.Time to change reflectance from 55% to 15% at 25o<6.0 seconds
8.Time to change reflectance from 15% to 55%<8.0 seconds
9. They are “hands off”, no manual adjustments are required leaving the driver free to watch the road.
10. The are variably dimming, meaning they are continually dimming and clearing to the precise level necessary to optimize vision.
11. In the darkest state, the minimum reflectance is only 7% and increases from there depending on the glare conditions.
12 Auto-Dimming Mirrors use advanced “Electrochromic” technology providing maximum glare management. 3.5inch or 4.3inch car rearview mirror monitor


Material quality
1,wireharness
6 meter or 10 meter
2,shell: ABS+PC, heat resistance, low temperature resistance, impact resistance
3,camera lens
Nano-glass lens, heat resistance, water shock, anti-corrosion, long working hours can not afford mist.
Unit Dimension (L*D*H) 26.5*8*3.2
Qty per Export Carton 10pcs
Unit Packing: (L*W*H) 31*17.5*6.5cm
Export carton (L*W*H) 35.5*32.7*38cm
Unit Packing (G.W.) 1.3KG
Export carton (G.W.) 13KG
MOQ 100PCS
20'FT Qty 3000pcs



Parking sensor Features:
1.Automatic activation when the reverse gear is chosen
2.Clearly visible display indicating the direction and distance of the obstacle
3.Integrated beeper for immediate alert
4.Easy-to-install, does not require maintenance
5.Does not run on battery power when the vehicle is parked and the engine switched off
6.Type approved in conformity with European regulations on electromagnetic compatibility

4.3inch car parking sensor rearview mirror monitor
1. Parking sensor with memory function auto activates when reversing;
2. Bi Bi voice warning, 4 replaceable sensors, Repaintable, Detect problems ;
3.Auto display reverse camera with night vision in high resolusion . (universal or special camera model for your choice)
4. Auto alarm when sensor head is damaged;
5. Detecting distance is 30cm, 50cm or 70cm, to calculate spare wheel or bike in the backside into the distance.
6. OE Grade High-quality parking sensor with high unti-interference.



Auto Switching When Reverse:
1.Under power-on condition:When reverse gear is engaged,the system automatically switches from DVD/VCD video to
backup camera video,and when parking is completed,it switches back automatically.
2.Under power-off condition:When reverse gear is engaged,the system automatically starts on to find the camera
signal and display backup video.When parking is completed,it switches off automatically



After - sales service

1.Sample is available for further evaluation
2. Warranty: 3year
3.Offer long-term OEM/ODM service



Safety
1. The rear camera display is only a visual assist device when reversing the vehicle. The image on the screen may be different from the actual conditions. Always look directly with your eyes and drive carefully.
2.Backup as alow as possible since high speeds might limit your reaction time to stop the vehicle.
3.The displayable range varies depending on the vehicle loads and road conditions.
4.Do not use the rear view camera system with the tailgate open.
5.Objects under the bumper or around the bumper can not be displayed.
