Quick Details

• Place of Origin:

  Guangdong China (Mainland)

• Brand Name:

  OEM

• Model Number:

  MO-144D

• Type:

  Interior Mirror

• Function:

  connect camera

• Product type:

  mirror monitor

• Color:

  black

• Place of Origin:

  Guangdong China (Mainland)

• Packing:

  gift box, 310 x 94 x42mm

• Delivery Port:

  Guangzhou

• OE Experience:

  No

Product Name:4.3 inch rear view mirror monitor

4.3 inch rear view mirror monitor

Application

all

Product Description:



 Product Description



4.3 inch rear view mirror monitor:

• Mounting position: inner side of vehicle windshield (rear mirror position of vehicles)

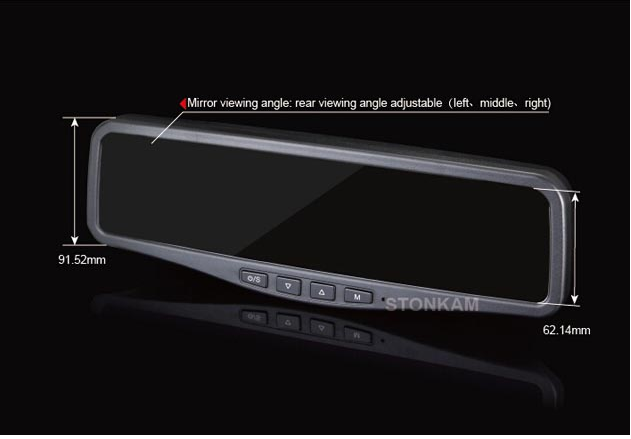

• Mirror viewing angle: rear viewing angle adjustable
• Shatterproof standard:2.84G
• Working condition: Performs in rugged conditions; operating temperature: -20°C~+70°C
• Distance label can be turned on or off, and can be adjusted up and down.
• Backlighting for buttons: automatic backlighting in dim light.
• Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up and saved)
• Power supply for camera, easy installation.
• Wide voltage input: support 12V and 24V system





4.3 inch rearview mirror monitor (MO-144D)

• Main chip: MST703.
• TV system: PAL/NTSC/AUTO
• Language system: 8 languages selectable
• Video input: 2 video inputs and power supply for camera
• Distance label: Can be adjusted up and down
• Auto trigger:2 camera trigger wires,once triggered, automatically switches to its corresponding camera
• Frame ratio: 16:9
• Dot pitch: 0.198(H) ×0.198(V)
• Resolution: 480(H) ×272(V)
• Brightness: 500 Cd/m2
• Contrast: 600:1
• Viewing angle: U:60°,D:70°, L/R:75°
• Power consumption: 3W
• Power supply: DC12-32V
• Operating temperature: -20°C~+70°C
• Storage temperature: -40°C~+80°C

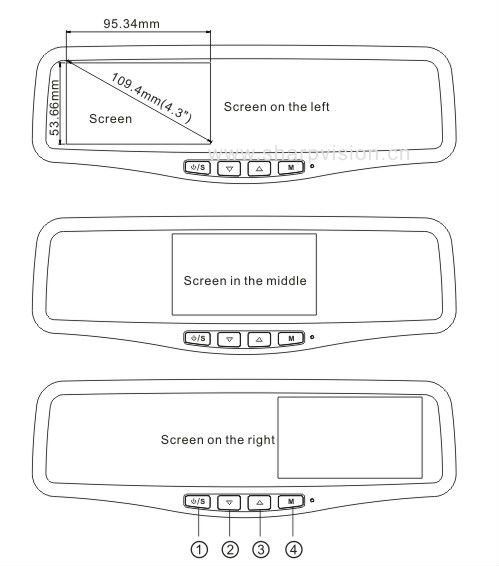

1	Power switch (long press for 3 seconds to power on and off, short press for channel selection)
2	Volume/Value up
3	Volume/Value down
4	Menu
