Quick Details

• Size:

  1000mm

• Material:

  stainless steel

• rubber coating:

  FKM NBR

• color:

  black

• Place of Origin:

  China

• Samples:

  Free

• Delivery Time:

  20 Working Days

• Packing:

  Wood

• Max. Production Capacity:

  1000000

• Export Ratio:

  11% - 20%

• OE Experience:

  No

Product Name:NBR Coated Metal Gasket Cylinder Head Sheet SAE 1010 SUS 301 SPCC Stainless Steel

NBR Coated Metal Gasket Cylinder Head Sheet SAE 1010 SUS 301 SPCC Stainless Steel

Application

all

Product Description:

We,FoShan MingBao Technology Co. Ltd,  can coat steel, stainless steel and aluminum with Nitrile Rubber (NBR), Fluorocarbon Elastomer (FKM), and various sealing materials such rubber coatings dope, gasket, anti-noise shim.

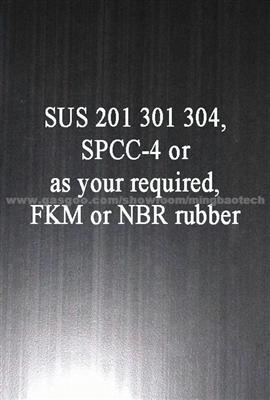

Gasket material include:  stainless steel(SUS 201, 301,304, SAE 1010,AISI 301, SPCC) sheet with surface of FKM(fluorine rubber)/ NBR(nitrile -butadiene rubber). Metal Sheet(Thickness:0.2mm, SPCC-4 from 0.2mm to 0.6mm), rubber 0.02/0.025/0.03/0.05/0.1/0.12mm each for double side.
FKM or NBR coated metal sheet using SUS & SAE stainless steel, we provide high quality & competitive price with vender such as TOMBO, Wolverine, MSC
stainless steelgasket sheet(Thickness:0.2mm, SPCC-4 from 0.2mm to0.6mm), rubber 0.02/0.025/0.03/0.05/0.1/0.12mm each for double side.

Rubber Coated Metal Material
It is a new kind sealing material that on one side or both sides of the metal surface coated with a thin, strong solid rubber, vulcanized together. The material can provide excellent performance of high-temperature resistance and durability, with a very low compression ratio. Compared with the conventional non-metallic sealing material, it has a relatively long service life, Therefore, It was generally used in harsh environmental condition of extra pressure and ultra-temperature sealing requirement.

Material Application:
Cylinder head Gasket, Gearbox Front Oil Seal, Gearbox Bank Rear Oil Seal, Intake or Exhaust Manifold Gasket, Water Pump Gasket, Noise-damping Gasket, Buffer Strike Gasket, Automotive Air Conditioning Gasket, Air Compressor Gasket.

Metal Core and Rubber Type Options:

The metal core of RCM Material has different options according to gasket application as following:

    Rubber Type:  FKM, NBR,  Foamed Rubber
    Metal TypeStainless steel(SUS 201, 301, 304, AISI 301), Cold Roll Steel(SPCC or SAE), Aluminum.

Detail list for Rubber coated Metal sheet products/samples offering

We,FoShan MingBao Technology Co. Ltd, specialize in manufacturing and exporting of metallic cylinder head gaskets materials with surface of rubber NBR or FKM. Our factory have the advanced design team and morden production line together. Gasket material include: stainless steel(SUS 201, 301,304, ...[Read More]
