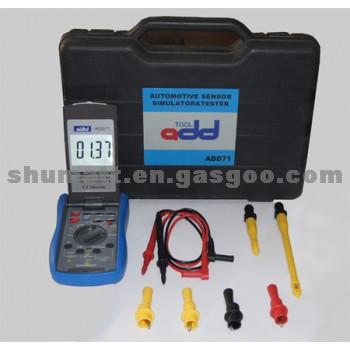

Automotive Sensor Simulator And Tester ADD71

Application: all brands
Market Type:After Market
FOB Price: USD 163
Other Price Term: CIF, CFR
Payment Terms: L/C, D/A, T/T, M/T, D/D, CASH
Samples: Charge
Minimum Order: 1Set/Sets

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Type:
Engine Analyzer
Place of Origin:
China
Samples:
Charge
Sample Price:
163
Delivery Time:
3 Working Days For ADD71
Packing:
We Use 2 Layers Packing To Make ADD71 Safe.
Delivery Port:
Shenzhen
Max. Production Capacity:
10000 Sets
Export Ratio:
91% - 100%
OE Experience:
No

Product Name:Automotive Sensor Simulator And Tester ADD71

Automotive Sensor Simulator And Tester ADD71

Application

all brands

Product Description:

Automotive Sensor Simulator & Tester Description:

Measure the signals of automotive sensors

The most complete hand held diagnostic tester for sensors,wiring,connectors
and on-board computers
DC voltage,lambda,frequency and pulse signals can be measured
Digital display shows actual output of signals
Measures any voltage AC or DC,resistance or frequency output

Allows Simulation of most Sensor and computer managemeng omponents

Simulating temperature sensors,throttle potentiometers,switches,air
flow meters and lambda/oxygen sensors
Features AC voltage output to simulate vehicle speed sensors(vss),
CAM,CRANK,and ignition reluctors
Simulates actual working condition of any sensor without having to remove it
from the vehicleA.B.S.,Crank,Can,Coolant,Oxygen,MAP,MAF,MAT,VSS,etc

Cheeks basic ECU operation

Controlling the signals being produced allows you to check ECU response and
operation.This prevents mis-diagnosis where the fault may lie in the ECU itself
or in the wiring between the component and the ECU.Works independently or with
any scan tool ever made

Can be used on any domestic or import vehicle

Eliminates unnecessary replacement of non-defective sensors

Can drive computer into"open or closed loop."

Automotive Sensor Simulator & Tester Specifications:

Simulate Signal	Range	Function
DC Voltage	0-1V	Simulating lambda/oxygen sensors
	0-5V	Simulating DC signal of sensors
	0-12V	Simulating DC signal of sensors
Resistance	0-5K	Simulating temperature or resistance sensors
Resistance	0-200K	Simulating temperature or resistance sensors
Frequency SignalV/Duty/Hz	0-5v 10-90% 10-4KHz	Simulating frequency signal sensors
Frequency SignalV/Duty/Hz	0-12V 10-90% 10-4KHz	Simulating frequency signal sensors

Test Function	Range	Basic Accuracy
DC Voltage	400mV,4v ,40v,400v,1000v	±(0.5%+3d)
AC Voltage	400mV,4v ,40v,400v,750v	±(0.8%+3d)
DC Current	40mA,400mA,10A	±(1.2%+3d)
AC Current	40mA,400mA,10A	±(1.5%+3d)
Resistance()	400,4K,40K,400K,4M,40M	±(1.0%+3d)
Capacitance	40nF,400nF,4μF,40μF,100μF	±(5.0%+3d)
Frequency	10Hz-10MHz	±(0.5%+3d)
Duty cycle	0.1%-99.9%	±(2.0%+3d)
Diode test and Audible Continuity test		Test current:1±0.6mA
Diode test and Audible Continuity test		>60 Buzzer sounds

Automotive Sensor Simulator & Tester Applications:

Package:

Package Size (1pcs): 29*36*8.2
Weight: 2.5kg

According to the modelsView More
