Quick Details

• Designed Capacity:

  1000 Sets Oer Year

• Main Raw Material:

  Copper, Iron, Steel

Product Name:5 Ton Battery Powered Locomotive With 600mm Track Gauge

5 Ton Battery Powered Locomotive With 600mm Track Gauge

Application

YU-TONG CTY5 BATTERY LCOMOTIVE

Product Description:

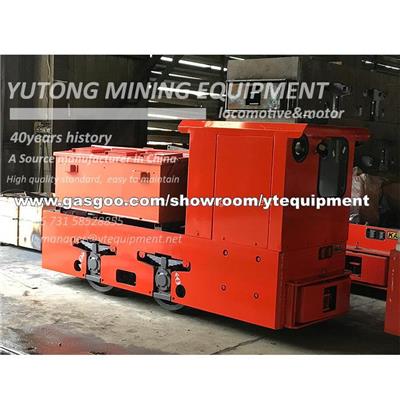

5 Ton Battery Powered Locomotive with 600mm Track Gauge

Battery electric locomotive is a kind of track traction equipment powered by batteries, which is generally used in mines. There are two types of battery electric locomotives, explosion-proof type and ordinary type. The explosion-proof type is mainly used in coal mines. There are also many options in terms of speed regulation and braking methods. Speed control methods include resistance speed control, chopping speed control and frequency conversion speed control. Braking methods include pure mechanical braking, hydraulic braking and compressed air braking. In addition, electric braking can also be selected as an auxiliary braking method.


Adhesive / total weight (t) : 5 t

Track gauge (mm) : 500.600.762.900

Traction (KN) : 7.06

Max. Traction (KN) : 12.26

Speed(km/h) : 7

Battery Voltage (V) : 90 or 96

Battery Capacity (Ah) : 385 or 300AH

Power (KW) : 7.5KWx2

Dimensions Length(mm) : 2860

Width(mm) : 920,1082 or 1220

Height(mm) : 1550

Wheelbase (mm) : 850

Wheel diameter (mm) : 520

Min Curve radius (m) : 6

Controller : Resistencia o IGBT

Braking method : Mechanical or hydraulic brake
