shaping machine:
High precision requirement for ring rolling machine will limit productivity and have high cost, therefore, sizing process after ring rolling not only increase precision of machining parts but only decrease requirement for ring rolling machine, that increase process comprehensive economic and technical level.
Sizing after rolling process can decrease roundness, taper degree and diameter size error greatly to improve precision further.

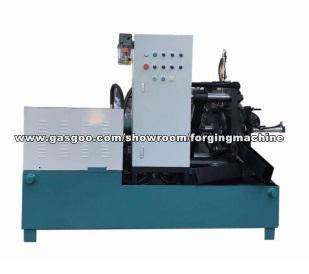

SPJZ350:
| 1 | Max. Machining OD (mm) | 400 |
| 2 | Min. Machining OD (mm) | 60 |
| 3 | Max. Machining Height (mm) | 150 |
| 4 | Nominal Force (KN) | 180 |
| 5 | Stroke Frequency (no/min) | 15 |
| 6 | Punch Max. Stroke (mm) | 250 |
| 7 | Oil Cylinder ID (mm) | 150 |
| 8 | Oil Cylinder Working Pressure (Mpa) | 12 |
| 9 | Hydraulic Motor Power (KW) | 18.5 |
| 10 | Outside Size (L*W*H) (mm) | 2500*1500*1800 |
