Quick Details

• Type:

  other

• Place of Origin:

  CHINA

• Samples:

  Not Available

• Delivery Time:

  45 DAYS

• Packing:

  WOODEN CASE

• Delivery Port:

  SHANGHAI

• OE Experience:

  No

Product Name:Frenometro Por Truck

Frenometro Por Truck

Application

GENERAL

Product Description:

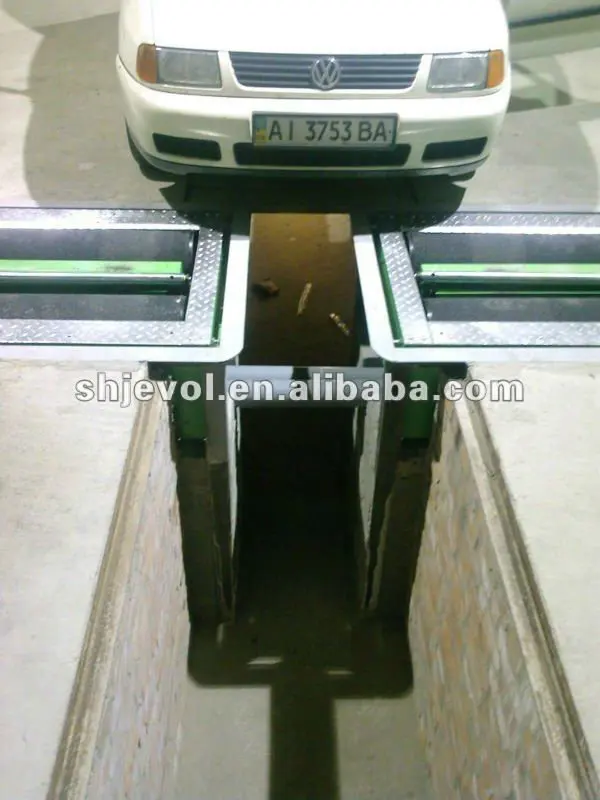

 Truck Brake tester ---roller brake tester   for Trucks with third roller and lift function

New design can apply to trucks with different track

Brake tester Measurement Items

Brake Force (N)

Axle Brake Efficiency (%)

Sum Brake Efficiency(%)

Axle Brake Unbalance(%)

Friction Efficiency(%)

Axle Load(kg)

Brake tester Parameters

Max axle load:10T

 Measure range:0-30kN

Motor:11kw*2

Power supply:380V/50HZ

Dimensions:2pcs 1800X980X440mm

Features

1. Corundum-coated roller surface, more enduring and long life time. The roller friction coefficient is more than 0.8 which is near the actual road condition.

2. With self-lock function which is convenient for car drive out after finishing test.

3. The driving roller is higher than the second roller avoiding the vehicle drive out of the bench during the testing.

4. The third roller can response and stop the motor automatically to avoid the wear of the tyre when the tyre locked during the testing.

5. The compact bench is compounded with brake tester and axle tester, space-saving, high repetition of the testing data.

Jevol established in 2006, focus on provide professional brake tester all around the world for 5 years. With high quality, humanized software, we provide testing equipment for FAW Toyota, Benz, Dong feng Honda ...4S center in CHINA. Since 2007 we started export brake tester widely to Bulgaria, ...[Read More]

Company Profile:

• Main Product:

  Brake Test Lane

• Business Type:

  Manufacturer

• Current Export Market:

  South America, Southeast Asia

Factory Profile:

• Number of Employees:

  Less than 50 People
