Semi Automatic Commutator Mica Undercutting Machine With Touch Screen

Application: WINDAUTOMATION
Market Type:After Market
Price: Inquiry For It?

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Output Power:
3kw
Length:
1300mm
Width:
950mm
Height:
1950mm
Output voltage:
380V
Output current:
8A
Place of Origin:
China
OE Experience:
No

Product Name:Semi Automatic Commutator Mica Undercutting Machine With Touch Screen

Semi Automatic Commutator Mica Undercutting Machine With Touch Screen

Application

WINDAUTOMATION

Product Description:

PLC Control Armature Commutator Mica Wire Slotting Machine

(1) Technical Data

WIND-CU-8066				WIND-CU-8066
2~99				2~99
3000~5000RPM Adjustable				3000~5000RPM Adjustable
30-80mm				30-80mm
<100mm				<100mm
380V				380V
3KW
<100mm				<100mm
10 Sets	So only 10 differents kinds of armatures Can we make a store setup....is that right?	Yes, only 10 kinds can be stored in touch screen	We need at least 50 recipes	With 50 Recipies
<200mm	We have armature lenght from 142 up to 450mm. (shaft lenght)	The size is over standard range, a custom made undercutting machine is needed,		Able to use big armatures up to 450mm shaf lenght
Yes, industrial vacuum clearner is included in Wind Automation offer				industrial vacuum clearner is included in Wind Automation offer
The cutter Lifting action can ensure no burrs	Please send me videos or more details	Please check the video (Armature shaft size below 18mm)		The cutter Lifting action can ensure no burrs
About 1 minutes (For each slot 2~3 seconds)				Production about 60 pieces per hour for a 25 slots armature
Cutter				Please inform how many spares of cutters	2pcs
SMC				SMC
PLC	Tell me the PLC brand	PLC brand is Mitsubishi		PLC MITsubishi
				Aluminium Profiles, stainless steel and steel sheet	OK
You can choose from				RAL 9001	OK
Safety curtain				Safety curtain	OK
13009501950mm				13009501950mm	140010001950mm
60days				60days	90days
15 Month from B/L date				15 Month from B/L date

(2) Competitive Advantages

1. With Mitubishi PLC
2. Rise the cutter before slotting to prevent burr
3. The burr remover device can be added on tailor made machine
4. Machine has the device the recipe must allow to set number of revolution of the armature
while the device is turned on. For example, the armature spins three times CW and three CCW

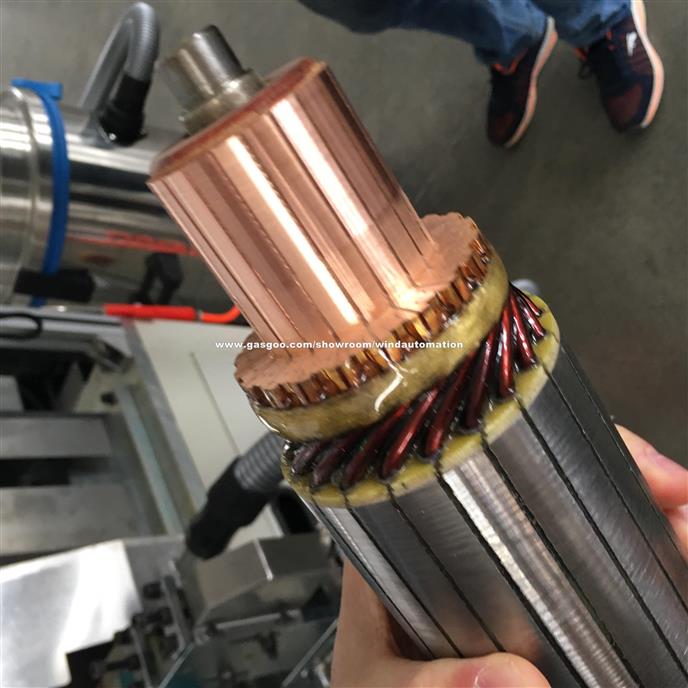

(3) Armature handled by mica undercutting machine

For armature upto 450mm length, no problem for undercutting machine ,the standard machine transmission mechanism might and part of machine configuration should be changed to meet the biggest armature size and weight requirement.

(4) Attention points
1. We can modify the program of machine to let it have more recipes per your requirement
such as 30 recipes
2. Can add a device on the undercutting machine that sands the commutator after the undercutting
process,this process can ensure that the commutator will not have any kind of burrs
