Hv/LV Switch Cabinet Test Bench

    • Application: Acura
    • Market Type:After Market
    • Price: USD 3000-5000
    • Payment Terms: L/C, T/T
    • Samples: Not Available
    • Minimum Order: 1Set/Sets

Quick Details

  • Input:

    3 phase 4 line AC 380V

  • Samples:

    Not Available

  • Delivery Time:

    15 Working Day

  • Packing:

    Plywood Case

  • Delivery Port:


  • Max. Production Capacity:

    100 Per Month

  • Export Ratio:

    31% - 40%

  • OE Experience:


Product Name:Hv/LV Switch Cabinet Test Bench

Hv/LV Switch Cabinet Test Bench



Product Description:

General Information:

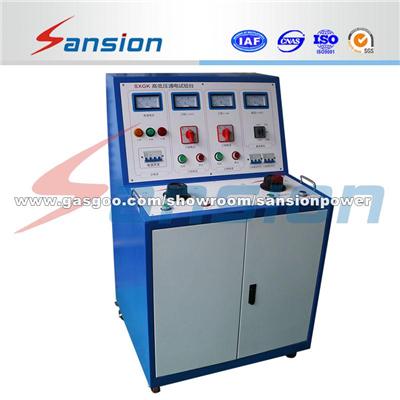

SXGK Series HV/LV Switch Cabinet Test Bench is mainly applied for ex-work energized testing for high voltage and low voltage cabinet manufacturers. The test bench could provide various AC/DC power source, in order to detect switch cabinet.

 Reading directly: Digital meters to display current, voltage, power factor test value.
 Measuring accurately: High precision, test value is accurate.
 Full protections: Each circuit is with air switch protection.
 Portable: Small size, light weight, easy to move.

Main Technical specifications:
 Input: 3 phase 4 line AC 380V
 Output voltage and current:
    3 phase AC 0-50A output (10V, adjustable) one group
    3 phase AC 100V output (fixed value) one group
 AC operating voltage output is AC 0-380V, 220V, the current is conventional and adjustable.
 DC operating voltage output DC 0-300V adjustable.
 Single phase AC 220V output (fixed value, plug type) two groups.
 3 phase 4 line AC 380V output (fixed value, wiring port) one group.
 Necessary output units to be increased output protection, and equipped with air switch.
 Power supply: AC 110V/115V/120V/127V/220V/230V/240V is optional
Input frequency: 50Hz/60Hz is optional

Please kindly contact with Sansion Power Elctric for details information, we can select correctly designed test system for you.
