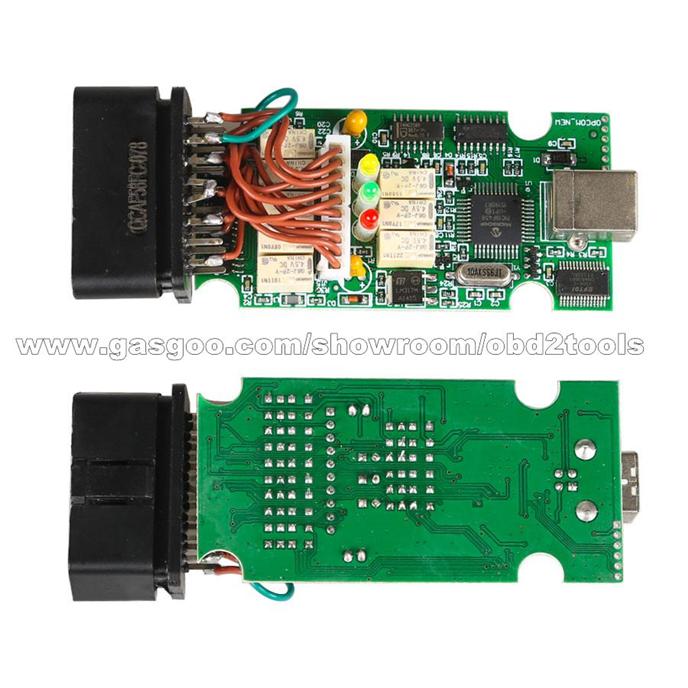

OPCOM V1.95 OP COM 1.95 Diagnostic Inteface With PIC18F458 And FTDI Chip

    • Application: OPEL
    • Market Type:After Market
    • FOB Price: USD 20
    • Payment Terms: T/T, CASH, WU/PP
    • Samples: Charge
    • Minimum Order: 1PCS

Quick Details

  • Power:

    100W

  • Type:

    Engine Analyzer

  • Voltage:

    12v

  • Length:

    8cm

  • Width:

    6cm

  • Height:

    4cm

  • Samples:

    Charge

  • Sample Price:

    30

  • Delivery Time:

    3 Workdays

  • Packing:

    Shipping Package

  • Delivery Port:

    Shenzhen

  • Max. Production Capacity:

    5000 PCS/MONTH

  • Export Ratio:

    91% - 100%

  • OE Experience:

    No

Product Name:OPCOM V1.95 OP COM 1.95 Diagnostic Inteface With PIC18F458 And FTDI Chip

OPCOM V1.95 OP COM 1.95 Diagnostic Inteface With PIC18F458 And FTDI Chip

Application

OPEL

Product Description:

Opcom OP-Com Firmware V1.95 Software 2014V Can OBD2 for OPEL

New OPCOM V1.95 Firmware 2014V Software Features:
1. Software Version: 2014 Firmware Version: 1.95. OPCOM V1.95 with new program can work more stable than opcom v1.70 and opcom v1.65.
2. OPCOM is a special PC Based diagnostic interface especially for OPEL.

Tip: Never Update It Online, Otherwise It Will Damage The OP-COM!

New OPCOM V1.95 Firmware 2014V Software Function:
1. It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
4. Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all available information:

Full Fault Code Text Description:
1) Full status information (Present, Not present, Intermittent)
2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

You can also run output tests on many controllers.
PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

Package list:
1pc x OP COM Interface
1pc x USB Cable
1pc x Software and Drivers CD
