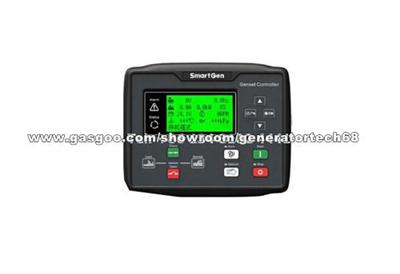

Product Name:HGM6100N SERIES GENSET CONTROLLER

HGM6100N SERIES GENSET CONTROLLER

Application

HGM6100N SERIES GENSET CONTROLLER (HGM6110N/6120N/6110NC/6120NC/6110CAN/6120CAN) HGM6100N series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French with easy and reliable operation. Product Code: 6010042 Power Supply: DC(8-35)V Case Dimensions: 209x 166 x 45(mm) Panel Cutout: 186 x 141(mm) Operating Temp. : (-25~70)℃ Weight: 0.56kg Parameter list Function Item Parameter Display LCD(132*64) Operation Panel Silicon Rubber Language Chinese & English & Others Digital Input 5 Relay Output 6 Analogue Input 3 AC System 1P2W/2P3W/3P3W/3P4W Alternator Voltage (15～360)V(ph-N) Alternator Frequency 50/60Hz kW/Amp Detecting & Display ● Programmable Interface USB RTC & Event Log ● Scheduled Start Genset ● Maintenance ● DC Supply DC(8～35)V Case Dimensions(mm) 209*166*44 Panel Cutout(mm) 186*141 Operating Temp. (-25～+70)℃

Product Description:



















  HGM6100N SERIES GENSET CONTROLLER (HGM6110N/6120N/6110NC/6120NC/6110CAN/6120CAN)
HGM6100N series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three remote (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French with easy and reliable operation.
Product Code: 6010042
Power Supply: DC(8-35)V
Case Dimensions: 209x 166 x 45(mm)
Panel Cutout: 186 x 141(mm)
Operating Temp. : (-25~70)
Weight: 0.56kg

Parameter list

Function Item	Parameter
Display	LCD(132*64)
Operation Panel	Silicon Rubber
Language	Chinese & English & Others
Digital Input	5
Relay Output	6
Analogue Input	3
AC System	1P2W/2P3W/3P3W/3P4W
Alternator Voltage	(15360)V(ph-N)
Alternator Frequency	50/60Hz
kW/Amp Detecting & Display
Programmable Interface	USB
RTC & Event Log
Scheduled Start Genset
Maintenance
DC Supply	DC(835)V
Case Dimensions(mm)	209*166*44
Panel Cutout(mm)	186*141
Operating Temp.	(-25+70)
