Quick Details

• Type:

  other

• Output Power:

  5kw

• Output Voltage:

  380v

• Length:

  4500mm

• Width:

  1200mm

• Height:

  1800mm

• Place of Origin:

  China

• Samples:

  Not Available

• Delivery Time:

  35 Days

• Packing:

  Wooden Box

• Delivery Port:

  QINGDAO

• Max. Production Capacity:

  100sets/Month

• Export Ratio:

  71% - 80%

• OE Experience:

  No

Product Name:YYW Hard Bearing Universal Joint Drive Dynamic Balancing Machine

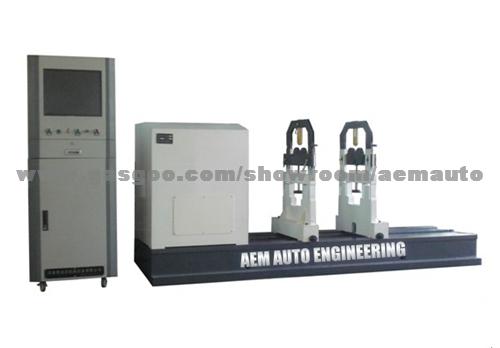

YYW Hard Bearing Universal Joint Drive Dynamic Balancing Machine

Application

motor, blower, fans, diesel motor, turbocharger, armature, crank shaft, rotors of paper machinery and textile machinery, farm machine etc.

Product Description:



YYW universal joint drive balancing machine

Widely apply for industries like motor, blower, fans, diesel motor, turbocharger,
armature, crank shaft, rotors of paper machinery and textile machinery, farm machine etc.
Horizontal hard bearing dynamic balancing machine serials
Wheel bearing
Motor and Inverter for speed regulation
Industrial computer to process data
Colored screen display unbalance value, phase angle, and practical rotation speed
Overall cast base, better stability
Balance test as single side, double side, multi side
Apply for shaft, plate, and extended focus rotor
High accuracy, direct, dependable quality, convenient maintenance
Software has two calibration function like usual piece and standard rotor
Parameter input, overview, test, data save, operate and menu


Model	Max. mass of workpiece (kg)	Max.diameter of workpiece   (mm)	Distance between two bearing support   (mm)	Max.rotor Diameter (mm)	Balancing speed min   (r/mm)	Min. achievable residualun balance(g.mm/kg):	Unbalance reduction ratio(%):	Drive power  (kw)
YYW-160	5-160	950	60-1420	10-180	325/650/1300	1	90	0.85/1.5
YYW-300(A)	10-300	1200	60-1700	20-180	325/650/1300 (A300-2500 Neutral speed regulating)	1	90	2..2/3.3 A5.5
YYW-500(A)	20-500	1500	70-1600	15-240	325/650/1300 (A300-2500 Neutral speed regulating)	1	90	3/4.5 A7.5
YYW-1000(A)	20-1000	1500	70-2300	15-240	325/650/1300 (A300-2500 Neutral speed regulating)	1	90	5/7.5 A7.5
YYW-1600A	30-1600	1800	100-2500	15-240	300-2500 Neutral speed regulating	1	90	11
YYW-3000S	50-3000	2000	300-3000	40-300	160-1500 Neutral speed regulating	1	90	7.5
YYW-3000A	100-3000	2400	300-3000	40-300	180-1500 Neutral speed regulating	1	90	11
YYW-5000A	300-5000	2400 2000	340-2960	40-180 180-300	180-1500 Neutral speed regulating	1	90	18.5
YYW-10000A	300-10000	2400 3200	240-5100	50-200 200-400	200-1200 Neutral speed regulating	1	90	45
YYW-20000A	500-20000	2400   3200	300-5100	50-200 200-400	200-1200 Neutral speed regulating	1	90	55
