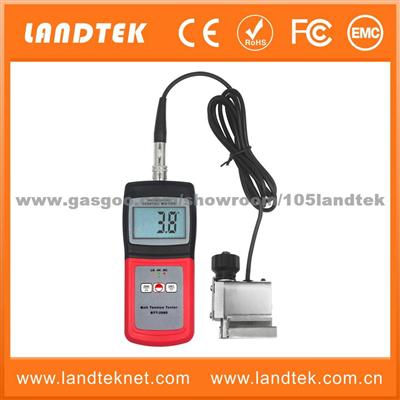

Belt Tension Tester BTT-2880 (new)
Applications:
Mainly used in belt tension measurement, can also be applied to measure the tension of objects such as tapes, wires.
Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, printing.
Features:
* This Belt Tension Tester used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement.
* It can be used to measure and adjust the tension of timing and auxiliary belts fitted to motor vehicles and other machines.
* Tension can be displayed in a variety of standard and manufacturers' units.
Details:
Display | LCD |
Tension Indicator | Colored LED Indication of High,Low and OK |
Measurement Range | 0~750N(Newtons) |
0~120lb(Pounds) | |
0~77kg(Kilograms) | |
0~114 Seems | |
Belt Width | Up to 36 mm |
Overload Alarm | 750N |
Maximum Load | 850N |
Resolution | ±1(Least Significant Digit of Units) |
Accuracy | ±5% of full-scale |
Data Output | USB,RS-232,Bluetooth |
Audible Warning | Piezoelectric Sounder |
Power Supply | 4x1.5V AAA(UM-4)Battery |
Dimensions | 135x62x33 mm |
Weight | 335g(Not Including Batteries) |
Standard | Main Unit |
Accessories | Measuring Head |
Carrying Case(B04) | |
Operation Manual | |
Optional Accessories | RS-232C Cable with Software |
Bluetooth Data Adapter with Software |
For more details,please feel free to contact us.Thank you!
