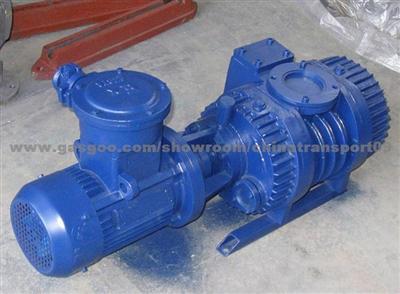

Image for ZJ150 Roots Vacuum Pump

ZJ150 Roots Vacuum Pump

Application: China Coal
Market Type:After Market
FOB Price: USD 1~10000
Payment Terms: T/T, paypal,western union
Samples: Not Available
Minimum Order: 1Set/Sets

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Place of Origin:
China
Samples:
Not Available
Delivery Time:
5-10 Days After Your Payment
Packing:
Carton Box, Plastic Bags, Wooden Cases Or As Your Requirement
Delivery Port:
Qingdao,Ningbo,Shanghai,Shenzhen
Max. Production Capacity:
1000 Sets Per Month
OE Experience:
No

Product Name:ZJ150 Roots Vacuum Pump

ZJ150 Roots Vacuum Pump

Application

China Coal

Product Description:

chinacoal09

we provide service of enterprise's customs declaration, inspection.

The Roots vacuum pump is also called mechanical booster. It is the main pumping equipment in the middle or high vacuum. Its working principle is similar to the Roots fun by two rotors whose shape is like "8" and move synchronously to achieve the suction and discharge.
According to the technics for pumping amount of steam in the chemical, pharmacy and so on, we improved the sealing structure of the pump cavity and bearing housing so as to reduce the oil emulsification in the bearing housing or gear box efficiently. So the ZJ series Roots vacuum pumps are more suitable to pump amount of steam or solvent.
Main characteristcs:
Higher suction capacity in wide pressure scope from 1 to 1×104Pa.
To prevent the oil steam to pollute the vacuum system for without any oil in the pump cavity.
Less libration, lower noise.
Less mechanical attrition, lower power.
Easy to maintain and repair, low cost but long life.
To pump the coagulated gases.
They cannot be used separately and should be connected with a fore pump. The Roots pump are not allowed to start under the atmosphere until the inlet pressure of the fore pump reaches the vacuum approved by the Roots vacuum pump. The fore pump is water ring vacuum pump, oil ring vacuum pump or oil sealing mechanical pump.
For pumping the amount of steam or solvent, the Roots vacuum pump structure is improved in order to avoid oil emulsification in the gear housing.

Type		ZJ-15	ZJ-30	ZJ-70	ZJ-150	ZJ-300	ZJ-600	ZJ-1200	ZJ-2500
Suction capacity(L/s)		15	30	70	150	300	600	1200	2500
Limited pressure(Pa)		5×10-2	5×10-2	5×10-2	5×10-2	5×10-2	5×10-2	5×10-2	5×10-2
Max. pressure tolerance Pa)		8000	8000	8000	6000	4500	4500	3000	3000
Speed(r/min)		1390	2770	2870	2900	1450	2900	1450	2900
DN(mm)	Inlet	50	50	80	100	150	150	300	300
	Outlet	40	40	50	100	150	150	300	300
Weight(kg)		70	75	100	215	480	503	1580	1640
Motor output(kW)		0.55	0.75	1.5	3	4	5.5	11	22
