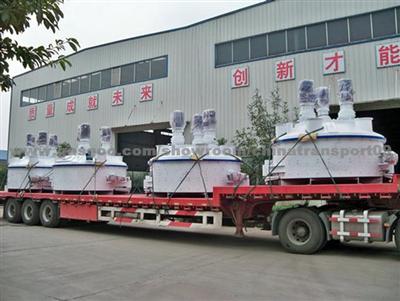

Image for JN Series Planetary Concrete Mixer

JN Series Planetary Concrete Mixer

Application: China Coal
Market Type:After Market
FOB Price: USD 1~10000
Payment Terms: T/T, paypal,western union
Samples: Not Available
Minimum Order: 1Set/Sets

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Place of Origin:
China
Samples:
Not Available
Delivery Time:
5-10 Days After Your Payment
Packing:
Carton Box, Plastic Bags, Wooden Cases Or As Your Requirement
Delivery Port:
Qingdao,Ningbo,Shanghai,Shenzhen
Max. Production Capacity:
1000 Sets Per Month
OE Experience:
No

Product Name:JN Series Planetary Concrete Mixer

JN Series Planetary Concrete Mixer

Application

China Coal

Product Description:

chinacoal09

we provide service of enterprise's customs declaration, inspection.

Specifications
Description of Planetary Concrete Mixer:
Planetary Concrete Mixers widely apply to produce precast concrete common commercial concrete and high performance concrete. It is suitable for mixing dry hard concrete (roller compacted concrete). It is widely used in the production of building blocks and prefabricated parts, and also can be used to produce of steel fiber reinforced concrete, color concrete and dry mortar, etc.
Technical Data Features of JN Concrete Mixer:

1. Steady Driving.
The power transmission is realized by a hard surface gearbox
2. High Mixing Efficiency.
The gear box drives the mixing arms to move with complex track, and the mixing is turbulent, then the mixer works more effectively.
3. Homogeneous Mixing.
Mixing blades are composed of several groups of mixing arms, which covers the entire mixing region. Both revolution and rotation of mixing blades ensure the homogeneity of the material. As the picture shows, mixing blades motion track covers the whole drum after a cycle.
4. Multiple Discharging Method.
According to various demands of customers, the discharging door can be operated hydraulically, pneumatically or manually.
5. Special Designed Water Sprayer
Special designed sprayer makes the water cloud cover more area and ensure the even distribution of the materials.
6. Easy to maintain and no leakage problem. Transmission system (including motor) is located at the top of mixing drum, completely separated from the concrete. Its convenient for maintenance and there is no leakage problem at the shaft end.

Parameters

Technical Parameters	Model
Technical Parameters	JN250	JN330	JN500	JN750	JN1000	JN1500	JN2000	JN2500	JN3000
Charging Volume (L)	375	500	750	1125	1500	2250	3000	3750	4500
Discharging Volume (L)	250	330	500	750	1000	1500	2000	2500	3000
Discharging Capacity(kg)	600	800	1200	1800	2400	3600	4800	6000	7200
Diameter of Mixing Drum (mm)	1300	1540	1900	2192	2496	2796	3100	3400	3400
Mixing Power (kw)	11	15	18.5	30	37	55	75	90	110
Discharging Power (kw)	2.2	2.2	2.2	2.2	3	3	4	4	4
Mixing Blades(nr)	1/2	1/2	1/2	1/3	2/4	2/4	3/6	3/6	3/9
Side Scraper	1	1	1	1	1	1	1	1	1
Discharging Scraper	-	-	-	1	1	1	2	2	2
Weightkg	1200	1700	2000	3500	6000	7000	8500	10500	11000
Dimension(LWH)mm	1570 1480 1750	1862 1850 1855	2220 2071 1880	2550 2295 2195	2893 2606 2217	3223 2906 2425	3625 3235 2630	3893 3555 2695	3893 3555 2975
Lifting Power(kw)	3	4	4	7.5	11	15	18.5	-	-

According to the modelsView More
