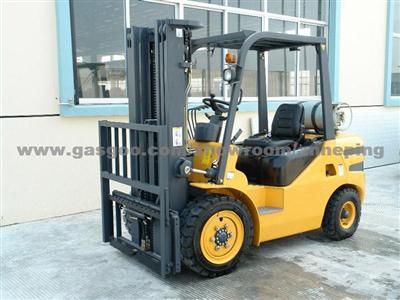

Diesel Forklift /3t Diesel Forklift /Forklift
Product Description chinacoal10
Standard
Orginal Japanese Engine
3Meter Duplex Mast
Automatic Transmission TCM technology
Air Tires
Yellow
1M lenght Fork
Option
Triplex Mast/Full Free Mast
Fork Extension
Pipe and valves
Side shifter
|
Model | HH30Z | |||||||
Power type | Diesel | ||||||||
Rated capacity | kg | 3000 | |||||||
Load center | mm | 500 | |||||||
Dimension | Lift height | mm | 3000 | ||||||
Free lift height | mm | 130 | |||||||
Fork size | N*U*L | mm | 1070*125*45 | ||||||
Mast inclination | Front/Back | deg | 6/12 | ||||||
Front o-verhang | mm | 490 | |||||||
Overall dimensions |
Length to face of fork | mm | 2680 | ||||||
Overall width | mm | 1225 | |||||||
Mast lowered height | mm | 2095 | |||||||
Overhead guard height | mm | 2120 | |||||||
Turning radius | mm | 2460 | |||||||
Min. right angle aisle width | mm | 2105 | |||||||
Perfermance | Travel speed | No load | km/h | 9/20 | |||||
Full load | mm/s | 8.8/18.5 | |||||||
Lift speed | mm/s | 480 | |||||||
Max. gradeability | % | 20 | |||||||
Max. drawbar pull | Kn | 13 | |||||||
self weight | kg | 4400 | |||||||
Tires | Tires | Front | 28*9-12-12PR | ||||||
Rear | 6.50-10-10PR | ||||||||
Tread | Front | mm | 1000 | ||||||
Rear | mm | 970 | |||||||
Wheelbase | mm | 1700 | |||||||
Min. ground (no ldad/full load) | Mast | mm | 152/132 | ||||||
Frame | mm | 158/138 | |||||||
Drive | Battery | Voltage | V/Ah | 12/90 | |||||
Engine | Model | 3T | |||||||
origin | Chinese | ||||||||
Rated output/r. p. m | kw/r. p. m | 37/2650 | |||||||
Rated torque | N. m/r. p. m | 148/1800 | |||||||
No. Cylinder | 4 | ||||||||
Displacement | cc | 2540 | |||||||
Type | Hydraulic | ||||||||
Shift | (Fwd/Rwd) | 1/1 | |||||||
Operating pressure | Mpa | 17.5 |
