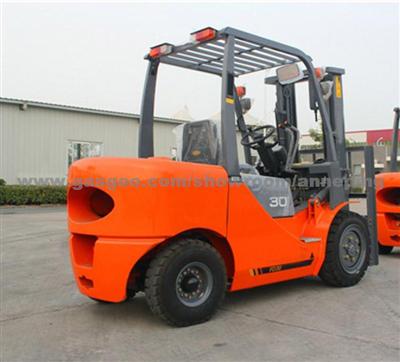

3T FD30 Diesel Forklift/Diesel Forklift/ Forklift
Features chinacoal10
1/ Integrated overhead guard and rain cover offering outstanding protection and visibility
2/ offers a wide range of Diesel, Gasoline and LPG engine options.
3/ forklifts do comply with the latest safety, emission and noise standard
4/ A hydraulic buffering system provides controlled and smooth lowering of loads and minimizes the risk of damage.
|
Technical parameters |
Parameter Name | Units | FD30C | |
| Features | Power type | Diesel | ||
| Rated Load | kg | 3000 | ||
| Load Center | mm | 500 | ||
| Lifting Height | mm | 3000 | ||
| Free lifting Height | mm | 145 | ||
| Fork Size | (L*W*T) | mm | 1070*125*45 | |
| Mast Tilt Angle | Front/Rea | 6/12 | ||
| Minimum Turing Radius | mm | 2400 | ||
| Minimum Stacking Right Angle Channel Width | mm | 4280 | ||
| Minimum right angle channel width | mm | 2120 | ||
| minimum turing Radius | mm | 120 | ||
| overhead guard height | mm | 2110 | ||
| front overhang | mm | 475 | ||
| Performance | Max.travelling speed | full load | km/h | 20 |
| Max. lifting speed | full load | m/s | 470/520 | |
| Max. traction | full load | kn | 18 | |
| Max.climbing ability | % | 20 | ||
| Dimension | overall length | without fork | mm | 2685 |
| overall width | mm | 1230 | ||
| Max. fork lifting height/weight(with load backrest) | mm | 4265 | ||
| Mast height | mm | 2055 | ||
| Chassis | tyre | front | mm | 28*9-15-12PR |
| rear | mm | 6.50-10-10PR | ||
| wheel base | mm | 1700 | ||
| wheel tread | front/rear | mm | 1000/970 | |
| curb weight | without load | kg | 4350 | |
| Power | battery | voltage/capacity | 12/90 | |
| engine | model | Xinchang490BPG | ||
| rated power | Kw/r/p.m | 40/2650 | ||
| rated torque | Nm/r.p.m | 162/2000 | ||
| bore*stroke | mm | 90*105 | ||
| cylinder amout | 4 | |||
| displacement | L | 2.82 | ||
| fuel tank volume | L | 70 | ||
| gears front/back | 1/1 | |||
| working pressure | Mpa |
