Quick Details

• OE Experience:

  No

Product Name:Slitting Line 0.3-1.0X1300mm

Slitting Line 0.3-1.0X1300mm

Application

fiat

Product Description:

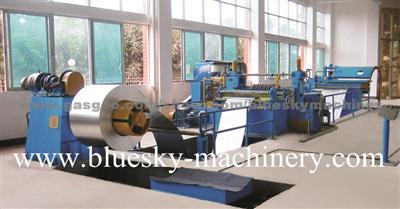

Slitting line 0.3-1.0X1300mm

Function:
This slitting line is used for slitting and recoiling aluminium, carbon steel and stainless steel, strip thickness 0.3-1.0mm. It is simple and economic slitting line, easy operation and lower price.

Main parameter:
1. coil material: aluminium plate, carbon steel, stainless steel
2. strip thickness: 0.3mm~1.0mm
3. coil m~1300mm
4. line speed: 15m~80m/min
5. coil max. O.D.: 1600mm
6. coil I.D.: 508mm
7. max. coil weight: 10T
8. max. slitting qty.: 1.0mm10 pcs, 0.4mm22 pcs

Machine components:
1. coil car(trolley)
2. hydraulic uncoiler
3. loop pit
4. side guide
5. slitter
6. scrap recoiler
7. loop pit
8. strip separator & tension station
9. recoiler
10. unloading car
11. hydraulic system
12. electric system

Working Process:
Coil loadinguncoilingside guideslittingscrap recoilingtension unitrecoilingunloadingcoil convey out
