VAG Diagnostic Tool VAS 5054A Wih UDS Function

    • Application: audi, Skoda, VW
    • OEM No/Model: ATP 016
    • Market Type:After Market
    • FOB Price: USD 90
    • Payment Terms: T/T, Westen Union, Paypal
    • Samples: Charge
    • Minimum Order: 1Unit/Units

Quick Details

  • Power:

    12W

  • Type:

    Engine Analyzer

  • Voltage:

    12v

  • Length:

    16cm

  • Width:

    6cm

  • Height:

    3cm

  • warranty:

    one year

  • Place of Origin:

    China

  • Samples:

    Charge

  • Sample Price:

    100

  • Delivery Time:

    3-5 Workdays

  • Packing:

    Shipping Package

  • Delivery Port:

    Shenzhen

  • Max. Production Capacity:

    2000 Units/Month

  • Export Ratio:

    91% - 100%

  • OE Experience:

    No

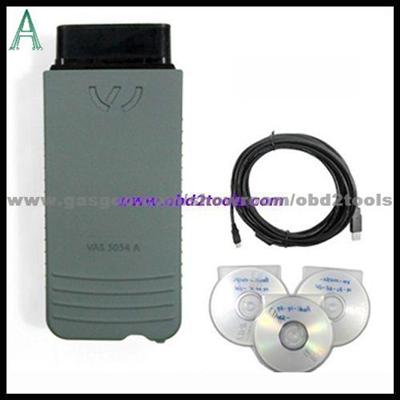

Product Name:VAG Diagnostic Tool VAS 5054A Wih UDS Function

VAG Diagnostic Tool VAS 5054A Wih UDS Function

Application

audi, Skoda, VW

Product Description:

OEM No/Model: ATP 016

VAG Diagnostic Tool VAS 5054A Wih UDS Function

The VAS 5054A with With OKI,M6636B,TJA1554AT chip is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers,mainly do AUDI VW Seat.It is bluetooth version.
Multi-language available: English/Germany/Russia/Spanish/Czech/France/Dutch
Newest version: V19


VAS5054A V19 New Highlights:
New arrival
Multi-language available
Add new car models Bentley and Lamborghini


VAS 5054A V19 Computer Windows System Requirements:
Windows System Language: American English
Windows XP(xp2/xp3)
System C:// have to be NTFS format
C:// need to have at least 10GB space for installing VAS5054A


Description:
Bluetooth version
The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 5 to 10 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
1.VAS 5054A Software Version:V15/V16/V17/V18/V19
2.VAS 5054A Language:English/Germany/Russia/Spanish/Czech/France/Dutch


Specification:
The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identifiedwith the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
Access via Bluetooth:After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
Access via USB:You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.


The following vehicle bus systems are supported:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)


Package list:
1× VAS 5054A main unit
1×CD(Basis-VASPS 19.00.01-English)
1×CD(Audi-19-84-English)
1×CD(VW-Marke-19-82-GB-English)
1xCD(Seat-19-English)
1xCD(Skoda-19-English)
