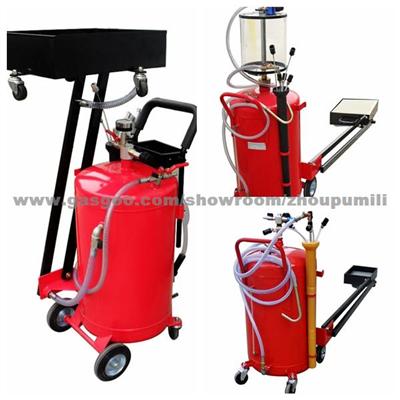

3180 Air-operated pantograph waste oil suction/drainers
Universal pantograph oil suction/drainer for cars with bowl, with wheel-mounted 70-litre tank equipped with level-gauge, supplied with series of probes.
Due to their versatility, these pantograph oil suction/drainers are universal drainers because they can be used to change the oil of all motor vehicles:
- by gravity with tank on floor - by gravity with tank raised, with motor vehicles placed on auto lift or pit.
- by suction with probe inserted directly in the engine, and anywhere because they do not require continuous connection to the compressed-air line or to other energy sources. (The oil must be hot 50/80°c).
|
|
3180 |
|
Tank capacity |
70L |
|
Bowl capacity |
15L |
|
Depressurizing pressure |
6-8bar |
|
Depressurization time |
1-2min |
|
Suction speed with oil at the temperature of 50-80 |
0.6-1.6L/min |
|
Suction hose |
1.5m |
|
draining hose |
1.5m |
|
Max.discharge pressure |
1bar |
|
Noise level |
75dB |
|
N.W./G.W. |
25kg/27kg |
|
Meas |
500*440*960mm;270*270*420mm |
