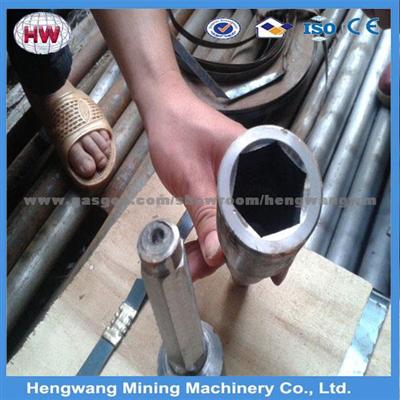

Anchor stirrer used with anchor drilling machine, used for roadway support in
the resin anchor rod agitation and installation, screw down the bolt nut
1, Connect jumbolter and anchor cable steel strand, used for mixing resin
anchoring agent, rapid installation.
2, Suitable for the steel strand, 15.24 mm to 15.24 mm.
3, Drill tail work size: B = 19, B = 22.
4, Used with anchor drilling machine, used for mixing and installation of resin
anchoring bolt, screw down the bolt nut.
Type |
adapt to the bolt specification | Connected to the drill size | Hexagonal nut size on side | Party Nut on the edge |
JQG16 | B19 | M16 | B19 | S24 |
JQG18 | B19 | M18 | B19 | S27 |
JQG20 | B19 | M20 | B19 | S30 |
JQG22 | B19 | M22 | B19 | S32 |
JQG24 | B19 | M24 | B19 | S36 |
JQG28 | B19 | M18M20 | B19 | S28 |
JQG16 | B22 | M16 | B22 | S24 |
JQG18 | B22 | M18 | B22 | S27 |
JQG20 | B22 | M20 | B22 | S30 |
JQG22 | B22 | M22 | B22 | S32 |
JQG24 | B2 | M24 | B22 | S36 |
