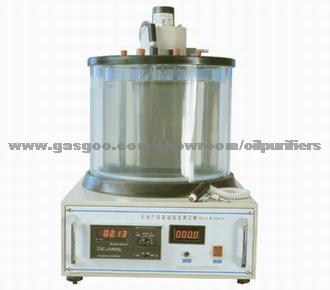

I. Main technical features
1. The instrument is a kind of specially-made testing machine which the temperature control accuracy can reach ±0.01 and having digital display. 2. It adopts hard glass bath and heat preservation cover(double shell).Good heat prevention and easy to observe the sample. 3. It adopts desktop and all-in-one machine design,convenient to use. 4. It adopts electric stirrer to ensure the uniform of bath temperature.
II. Main technical specifications
1. Power supply AC 220 ± 10 %, 50 Hz. 2. Heating power1000W(auxiliary heating), 600W(temperature control heating) 3. Power for stirrer 6W, rotating speed1200RPM 4. Temperature range room temperature100 . 5. Temperature control accuracy ±0.01. 6. Timer 0.0s~999.9s 7. Constant temperature bath 20L, double shall structure. 8. Ambient temperature -10+35 9. Relative humidity 85. 10.Maximum power consumption 1800W. 11.Capillary viscometer tubes(Pinkevitch viscometer) 7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mm 12. Dimension 530mm×400mm×670mm Net weight about 42Kg Note: This instrument is equipped with 7 pieces of Pinkevitch viscometers.We can customize instrument equipping with Ubbelohde viscometers according to customer's requirements.
