Quick Details

• Max Output Power:

  15kw

• Size:

  200*90*170cm

• Certification:

  CE

• G.W:

  1000kg

• Color:

  Green

• Designed Capacity:

  1 Piece 1day

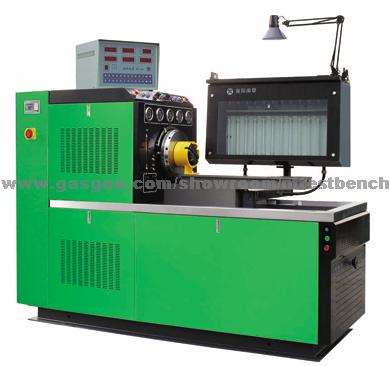

Product Name:Njection Pump Test Bench Injectors Test Bench 12PSB-560

Njection Pump Test Bench Injectors Test Bench 12PSB-560

Application

Alfa romeo, Aston martin, audi, Beiqi, Bentley, BMW, Buick, BYD, Chevrolet, Chrysler, DAEWOO, Daihatsu, Dongfeng, DADI Auto, fiat, Foton

Product Description:

Introduce

12PSB-560 Injection Pump Test Bench's application:VE pump,INLINE pump.

Technical parameter:
1. Adjustable rotation speed range: 0~4000RPM
2. Double series of graduates: 45/150CC
3. Volume of oil tank: 100L
4. Temperature stabilization: 40±2
5. Test oil filtering unit: 5μ
6. DC. Supply: 12/24V
7. Feed pressure: 0~0.4MPa (low), 0~4MPa (high)
8. Air pressure (MPa): -0.03~0.3
9. Rack travel range: 0~25mm
10. 3-phase power supply: 380V/50Hz or 220V,60Hz,3phase
11. Flywheel inertias moment: 0.8kg·m2
12. Center height: 125mm
13. Output power: 7.5kw~15kw
14. Overall dimensions: 200X90*170CM
15. Net weight (kg): 1000.
16. Average trouble-tree working time of test stand: 2500h.

 Brief introduction:

It adopts advanced frequency conversion technology and digital technology with automatic and manual double control for the rotation speed, temperature and count.Equipped with displacement sensor, it can test different kinds of mechanical fuel pumps.

 Functions:
1.Test the oil supply amount and uniformity in each cylinder.
2.Test the interval angle in each cylinder and commencement of oil supply under the static state.
3.Test and adjust the performance of mechanical speed governor.
4.Test the sealing performance of the injection pump.
5. Test the solenoid valve of distributor pump.
6.Test the return volume of distributor pump.
7.Test the cavity pressure of distributor pump.
8. Test the performance of air film mechanical speed governor.
9. Test the performance of pressure compensator.
10. Test feeding pump

Characteristics:

1.Automatically and manually double control system.
2.High precision test of rack travel
3.Automatic oil unloading device.
4.Large inertia flywheel.
5.Optional installation with lubrication oil system.
6.Optional installation with temperature control system.
7.Automatic flap oil collect device.
