Quick Details

• Place of Origin:

  China

• Delivery Time:

  10 Days

• Packing:

  Wooden Case

• Delivery Port:

  Chongqing

• OE Experience:

  No

Product Name:GD-0702 Marshall Electric Compaction Tester

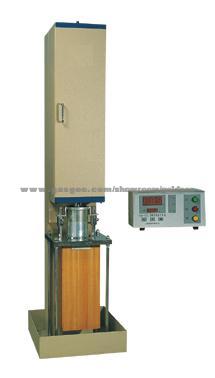

GD-0702 Marshall Electric Compaction Tester

Application

Gold

Product Description:

Purpose:

GD-0702 Marshall Electric Compaction Tester  is designed and made as per T0702 Bituminous Mixture Test Sample Making Methods (Compaction Methods) in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. The test sample made by this instrument is in accord with test requirements for test sample stipulated in the Industry Standard JTJ 052 T0709 Bituminous Mixture Marshall Stability Test. It is a special instrument to make test sample for bituminous mixture Marshall Test.
Technical parameters:
1. Weight of hammer: 4536g±9g;
2. Drop height of hammer: 457mm±1.5mm;
3. Compaction speed: 60±5 times/min;
4. Compaction times: It can be preset in the range of 0~99 times; The preset times can be stored;
5. Power supply: AC 220 V±10%, 50 Hz;
6. Power consumption: 370 W;
7. Test mold:(1) Diameter: 101.6 mm;(2) Height: 63.5 mm;

Our company is a high-tech enterprise for researching, designing, developing and producing measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture ...[Read More]

Company Profile:

• Main Product:

  Oil Tester, Power Sector Instrument, Inclinometer, Winch, Road Lab Instrument, Laboratory Equipment

• Business Type:

  Manufacturer

• Current Export Market:

  South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Mid East, Africa, Oceania
