Product Name:GDVA-403 CT Test Set

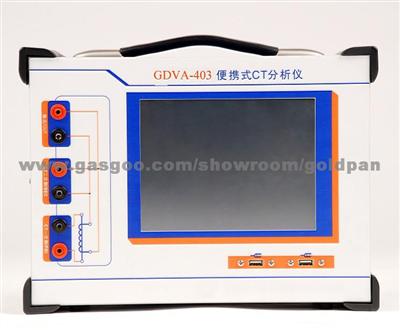

GDVA-403 CT Test Set

Application

Gold

Product Description:

1.1 General introduction
GDVA-403 CT Test Set is special tester for current transformer. It takes IPC as core to sample and data process. The instrument finishes CT tests based on different low frequency.  GDVA-403 CT Analyzer has 8.4 inches LCD to display and a 8.4 inches touch pad for operation. The tester has the characteristic of high precision, strong anti-jamming and easy operation.
1.2 Functions
1. Excitation curve, volt-ampere curve and error curve drawing2. Second burden measurement3. CT coil DC resistance measurement4. CT transformation ratio test5. CT phase polarity test6. Automatically make WORD and EXCEL test report.
1.3 Technique index
1.       transformation ratio test error<0.1%2.       voltage measurement error<0.2%3.       current measurement error<0.2%4.       output voltage0~110V AC5.       maximum current output 10A, instantaneous peak value 20A6.       8G storage space, save test data more than 10000 groups7.       work conditionPower supply: AC220V±10 %/50HzTemperature: 0~40°Chumidity: 90%RHSize: 330´240´150 mmWeight: <8kg
Similar ModelsGDVA-402 CT/PT Tester
GDVA-402V CT/PT Tester
GDVA-404 CT/PT Tester
