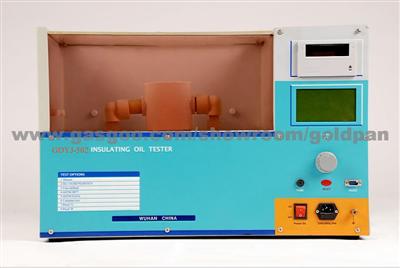

Product Name:GDYJ-502 Insulating Oil Dielectric Strength Tester

GDYJ-502 Insulating Oil Dielectric Strength Tester

Application

Gold

Product Description:

1.1General introductionGDYJ-502 Insulating Oil Dielectric Strength Tester  is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-502. You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise 1.2 Functions1 Breakdown test of user-defined2 Proof test3 IEC156/IS6792/BS5874/4 ASTM D1816 standard test5 ASTM D877 standard test6 5 minutes standard test7 Manual test8 Calibration interface for customers9 Unloading data to PC and making word report automatically.10 Result print 1.3 Features(1) AC220V±10% power supply input

(2) Output voltage:AC 0V~100KV

(3) Rate of voltage rise: 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

(4) Max test times: 9

(5) Init wait times:0~999s

(6) Stir time: 0~999s

(7) Wait time: 0~999s

(8) Measurement error: 3% max in the range of 10kv~100kv

(9) Weight 41kg

(10) Size:630 mm*400mm*300mm
