Quick Details

• Type:

  Fuel Injector Tester

• Output Power:

  11/15kw

• Output Voltage:

  380/220v

• Length:

  190cm

• Width:

  98cm

• Height:

  172cm

• Samples:

  Not Available

• Delivery Time:

  2 Weeks After Order Confirmation

• Packing:

  Export Wood Carton

• Delivery Port:

  Shanghai

• Max. Production Capacity:

  60 Sets Per Month

• Export Ratio:

  71% - 80%

• OE Experience:

  No

Product Name:Common Rail Test Bench CR-NT815A

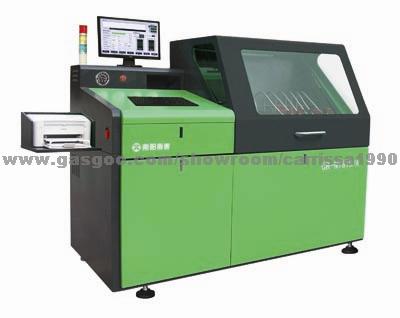

Common Rail Test Bench CR-NT815A

Application

Bosch,Delphi,Denso,Siemens common rail injectors and pumps.

Product Description:

Product Name: Common Rail Test Bench CR-NT815A
Option(On request)
1.VP37 pump test system
2.Piezo injector test system
3.EUI test system
4.EUP test system
5.Oil lubricate

Characteristics:
1. Full-automatic operation procedure, save the time to set up the data.
2. German flow sensor: flow range 0.008-2L/min, test precision 0.5%.
3. Bosch common rail system (external connection DRV to Bosch rail with
DRV) is used.
4.Rail pressure is controlled accurately by DRV and ZME valve.
5. Original Bosch CP3 common rail pump is equipped.
6. Industrial computer with windows system.
7 Rich database:640 types of data.
8. Self-protection under following status:overheat, oil-mist, overpressure, low
oil level,
9. Remote control is convenient for software upgrading and after-sale service.
10. Frequency converter is used to change the rotation speed.
11. Iron fuel tank with industrial air-conditioner inside .
12.Support Multi-language.

Functions:
1.Application: Bosch,Delphi,Denso,Siemens common rail injector and pump.
2.Pump test: measure feeding and return volume,pump chamber
pressure,feeding pressure,check sealing performance, and functions of ZME
valve.
3.Injector test: measure the injected fuel quantity & return volume under
full-loaded, idling, pre-injection and Emission status.
4. Check the sealing performance of the injector.
5. Check the solenoid valve.
6. Clean the injector and pump before testing.
7. Clean the ZME separately.
8. Testing 6 oil injectors in one setup.
9.User can add and edit the data by themselves.
10.Save and print the testing results & customer information.
11.Support software upgrading.

Main technical parameters:
1. Power: 11kw, 15kw optional
2. Oil pump rotation speed: 0-4000rpm
3. Test rang of rail pressure: 0-1800bar
4. Test precision of rail pressure: ±0.5Mpa
5. Test precision of flow sensor: 0.5%
6. Measuring rang of flow sensor: 0.008-2L/Min
7. Temperature of test oil:40±2
8. Filter precision of test oil: less than 5
9. Capacity of tank: 80L
10. Dimension: 190*98*172CM
11. Aggregate weight: 1000KG
12. Electricity: 380V, 50Hz, 3 phase
220V,60Hz, 3 phase
