Product Name:DSHD-0631 Asphalt Float Tester

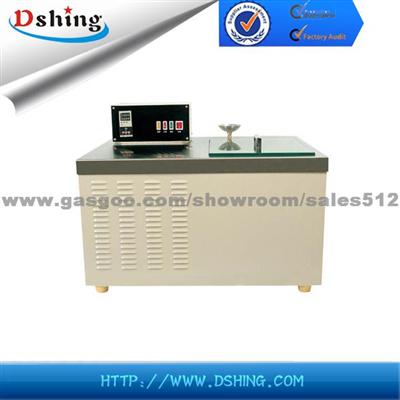

DSHD-0631 Asphalt Float Tester

Application

dshing

Product Description:

Product  introduction:
1:DHSD-0631 Asphalt Float Tester is designed and developed  as per T0631 Asphalt Float Test in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.
2:DSHD-0631 Asphalt Float Tester is applied  to determine float of residue from slowly solidification liquid petroleum asphalt distillation, and coal pitch.
3:The float of asphalt is expressed as the time, in s, that a sample becomes soft and been broken by water in a bath at a certain temperature. If no otherwise indicated, the test temperature for reside after distillation is 50 , and the test temperature for coal pitch is 32 or 50 .
4:DSHD-0631 Asphalt Float Tester can also be used as a constant temperature bath.

Technical parameters:
1. Power supply: AC 220 V (-5%+10%), 50 Hz;
2. Bath cubage: Length370×Width300×Height 300 mm;
3. Water in the bath: 28 L;
4. Heating device: Electric heater, power is 1300 W;
5. Refrigeration device: new type of refrigeration compressor;
6. Temperature controlling range: 580;
7. Temperature controlling accuracy: ±0.1;
8. Floating disk:
(1) Thickness: 1.4mm±0.1mm;
(2) Weight: 37.9g±0.2g;
9. Copper tube:
(1) Thickness: 1.4mm±0.1mm;
(2) Weight: 9.8g±0.2g;
10. Ambient temperature: 30;
11. Relative humidity: 85%;
12. Total power consumption: not more than 2000 W;
13. Size: Length750×Width540×Height 580 mm;
14. Net weight: 30 kg;
