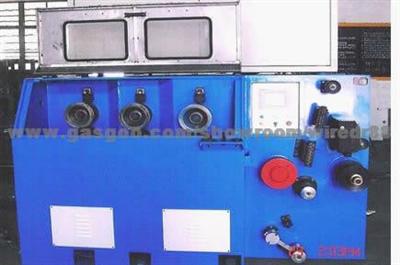

Product Name:Wet Wire Drawing Machine

Wet Wire Drawing Machine

Application

Dongfeng

Product Description:

Compared with straight line wire drawing machine, wet wire drawing machine has two notable characteristics. First, in the drawing process, there are varying degrees of relative sliding between the drawing wire and the spool (except finished spool). Second, when the wet wire drawing machine is in operation, wire, spool and wire drawing die are immersed in or be sprayed by cooling lubricating fluid.

Wet wire drawing machine has a broad market for its compact structure, small footprint and high drawing-intensive as well as no torsion in its running time. It is well suited for high speed drawing for good conditions of cooling and lubricating of drawing wires.

While in the drawing process, the relative sliding of drawing wire and the surface of spool consumes much power and abrasive wear of spool surface. Owing to the structure restriction of this wire drawing machine, it is more suitable for drawing wires of smaller diameters.

Wet wire drawing machine is available for drawing mild steel, carbon steel, stainless steel, copper, aluminum and alloys.

Sever types of wet wire drawing machines are provided and each of them has its own features. You can select the right one according to your particular conditions.

1. 25 Dies wet wire drawing machine
2. Turnover type wet wire drawing machine
3. High-speed wet wire drawing machine

Main technical parameters:

1. Inlet diameter: Φ 0.9-2.0mm
2. Inlet strength: 1350MPa
3. Outlet diameter: Φ 0.15-0.41mm
4. drawing passes: 25; average unit pressure: 13%
5. Max drawing speed: 25m / s
6. Motor power: tank - 37KW AC inverter motor and spool -  5.5KW
7. Cone pulley: monolithic assembly, surface coating - tungsten carbide , HRC58-62
8. Transmission Type: synchronous belt

Application
Available for mild, medium and high carbon steel.

Applied in drawing rope steel wire, steel rod, galvanized zinc iron wire, silicon slice saw wire, etc.

Anping Junchi wire drawing machinery Co., Ltd., a professional wire drawing machine manufacturer in China, has been engaged in fabricating wire drawing machines and other auxiliaries for 15 years. Our company has accumulated rich experience of developing, designing and manufacturing qualified ...[Read More]
