OEM No/Model: SV-2QS

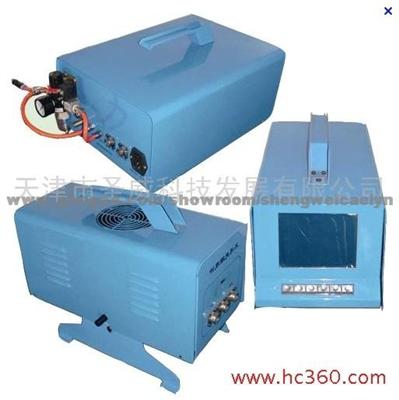

SV-2QS Automobile Exhaust Gas Analyzer
Main Technical Parameter:
|
Measurement Range |
CO: 0~10.0 10-2 (%) HC: 0~10000 10-6 (ppm) |
|
Response Time |
CO,HC10s |
|
Indication Error |
CO: ±5%(relative error:0~10%) HC: ±5%(relative error:0~4000ppm)±10%(relative error:4001~10000ppm) |
|
Power |
AC 220V±10% 50Hz±1Hz |
|
Preheating Time |
10 min. |
|
Gross Weight |
14KG |
|
Packing Size |
610 * 500 * 330mm |
Main Function:
1. Used to measure the concentration of HC,CO in the Automobile Exhaust Gas.
2. High-brightness LED (digital control) displays
3. Equipped with RS232 digital serial communication interface to facilitate networking
4. Automatic prompts zeroing per 30 minutes
5. Optional Configuration is a external printer
6. It is easy to use, good measurement accuracy, reliable quality,etc
