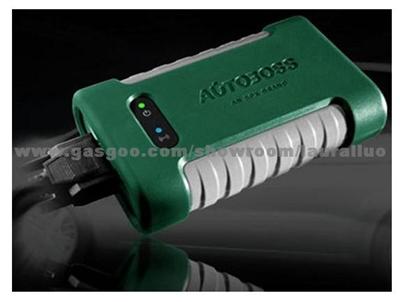

Autoboss PC MAX Wireless VCI


Now you can scan your vehicles anywhere without a cable with Autoboss PC Max Wireless VCI
(Vehicle Communication Interface)...

1. Diagnostic socket   2. Adaptor  3. Main cable  4. PC-MAX main unit  5. PC  6. Wireless
adaptor


PC-MAX offers
--Over 40 makes, 1,000 vehicle system coverage, --including CANbus systems
--Access to Powertrain, Chassis and Body systems
--One click "Quick Test" button to scan all ECUs
--Live data display with waveform displays
--Component-level and System-level activations
--Reset and clear adaptations, calibrations and service functions
--Hyundai and VW/ Audi immobilizer special functions
--ECU initialization and coding
--SAE J2534 "Pass-thru" ECU reprogramming
--Nissan/ Infiniti idle speed self learning function
--Frequent Internet software updates
--Multi-language for international market demand
--"PC-link" functions for PC operations

Advantage:
Free to test cars within 50-100m
(Distance depends on environment; the above distance is for reference only.)

Specification
--Power Supply: 8-12VDC, 110-250VAC, 50Hz
--Connection: Wireless or USB
--Minimum PC System Requirement (Not included):
-- Windows XP or Vista
-- CPU 300MHz
-- 256MB RAM memory
-- 1GB Hard Disk Memory
-- CD Drive
--Working Temperature: 10 - 176oF (-10 - 80oC
--Humidity: < 90%
--Dimensions: 20" X 14" X 6"
--Weight: 17.6 lbs

Software Features
With full-feature OEM-based software, experience the difference with AUTOBOSS PC-MAX.
Comprehensive diagnosis & reading of control modules. Successful diagnostics means proper
detection of all ECMs. With dealer-level capability and the widest vehicle range, the AUTOBOSS
PC-MAX will put your team in the driver's seat and your business on the road to success.

DIAGNOSTICS
Fault Codes
Now you can bring down the service costs associated with fault codes. Easily read & clear
vehicle specific information - manufacturer specific codes, factory codes, and generic fault
codes on a particular electrical circuit. Our Recommendation: Don't forget to print it out in
real time.



Quick Test & Quick Delete (select software)
Provides a bird's-eye view of all control modules in the vehicle system. The Quick Test
feature allows you to quickly scan all systems in the vehicle, identify controllers with
faults and provides immediate access to those systems without having to navigate through
multiple menus. Our Recommendation: Don't forget to print it out in real time.



Live Data
The basics of electronic diagnostics begin with fault codes & live data. Experience high-speed
response rate of 8-10 frames per second w/ real-time troubleshooting of up to 4 graphs.
Diagnose signals for rich or lean conditions with live data retrieval and viewing of modules
in digital and analog format. Our Recommendation: Don't forget to print it out in real time.



Component & System level actuations
Perform verification tests to validate the functionality of a particular electrical circuit.
This function will bypass time-consuming labor to check the workmanship of electronic
components such as switches, sensors, relays, & actuators. Use the PC-MAX to actuate control
modules and see what needs replacement without removing panels and testing without the usage
of a multimeter. (e.g. cylinder power balance test, EVAP system leak, EGR valve, solenoids,
power windows, winshield wiper activation, etc.)
