Quick Details

• Place of Origin:

  China

• Samples:

  Charge

• Delivery Time:

  Within 5 Days

• OE Experience:

  No

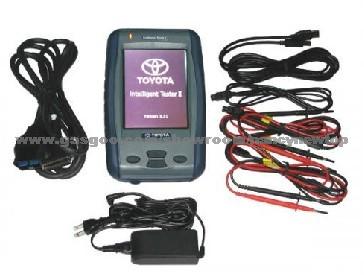

Product Name:TOYOTA DENSO Diagnostic Tester-2

TOYOTA DENSO Diagnostic Tester-2

Application

Toyota

Product Description:


Toyota Intelligent Diagnostic Tester-2(DST-2) for TOYOTA & LEXUS is a touch screen tool that enables you to diagnose control system for engines, ABS and airbag, even through CAN-diagnosis communication. Function:
1.All type of Toyota(made after 1996) and Lexus included read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.
2.DENSO Diagnostic Tester-2(DST-2) for TOYOTA & LEXUS enables you to diagnose control system for engines, ABS and airbag, even through CAN-diagnosis communication.
3.CAN communication Diagnosis DST-2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.
4.Easy operation on LCE display with touch panel 5.7 inch full color display with touch panel assists an easier operation
5.Voltmeter and Oscilloscope not only communication basis diagnosis (Diagnostic code, ECU data monitor, Active test), but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.
6.Data recording to your PC saved data such as data-list can be downloaded to your pc  Specification:
1.Feature
Dimensions:49CM*39CM*16CM
Source voltage DC 10-32V
Power consumption normail:7w(12VDC) charging:10w(12VDC)
Operation temp: 0~45??C
Storage temp: -10~ 60??C
LCD Display 5.7 inch
Touch panel input: by finger or stylus pen
Key four(up, down, two function keys)
Built-in clock for a time stamp
PC communication PC card slot CF x 1ch
USB Host: 1ch function:1 ch
Serial 1ch ( RS-232C)
Vehicle communication CAN, ISO9141
Back up power supply lithium-ion battery 7.4v 1000mAH

2.Character
1)Touchscreen & back lighting control
2)Easy & quick
3)User needn't worry about the after service since factory has an open patio for maintenance.
4)Language: English/Germany/French/Spanish/Italian/Chinese  Product list:
1. Mainframe -- 1pc
2. OBD-II -- 1pc
3. Charging line -- 1pc
4. Lin line -- 1pc
5. Measuring leads for multimeter 1 -- 1pc
6. Measuring leads for multimeter 2 -- 1pc AFTER SERVICE:
1. Guarantee: one year, from the date equipment arrival
2. Upgrade free for one year
3. Upgrade method: CD FAQ:
Q: is Toyota ITS2 with CF card?
A:yes, Toyota IT2 is with CF card, there is a CF card slot at the back of Toyota IT2 main unit. When you use the main unit, please do not take it off, CF card is used to store the tested result. Please refer "Toyota ITS2 Names of the Parts".
Q:Is this new and with the oscilloscope too?
A: Yes, it is with  oscilloscope . Q: Can i use this product to do airbag coding?
A: Yes,you can.It can do airbag coding and simple ecu programming.
