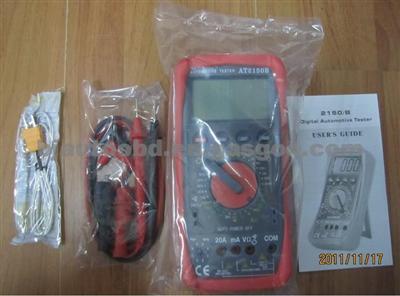

Automobile Tester AT-2150B
Feature:
1. Newly developed digital automotive tester with super design,easy operation, accurate
readings, large LCD display, and protective molding.
2. Unique protective device for operational errors. The testing port of mA or 20A can only be
opened when the current option is chosen, otherwise a blockage will engage for protection.
3. A PTC thermal element is connected with the input port V% so as to warrant the safety and
lifetime guarantee, in addition to the switches for the range scope.
4. Used to test the voltage and current of DC and AC power, the resistor, duty cycle,
temperature, parameter of the diode
and triode, circuit breaking, closed angle for distributor contact, and engine speed.
5. A portable tester for many uses including automobile testing and maintenance, engineering,
lab testing, productiontesting, field work and home appliance repair.
6. No charge 18 month quality guarantee.
7. Excellent, continuous maintenance.
Technic Specifications:
Basic Function |
Range | Basic Accuracy |
DC Voltage | 2V/20V/200V/1000V | ±(0.5%+3) |
AC Voltage | 2V/20V/200V/700V | ±(0.8%+3) |
DC Current | 200mA~20A | ±(1.2%+3) |
AC Current | 200mA~20A | ±(1.2%+3) |
Resistance | 200W/2kW/20kW/200kW/2MW/20MW/200MW | ±(0.8%+3) |
Temperature | -401000 | ±(1.5%+15) |
Cpacitance | 20nF/2uF/200uF | ±(5.0%+3) |
Dwell | 1/3/4/5/6/8CYL | ±(1.2%+2) |
Tach | 1/3/4/5/6/8CYL | ±(1.2%+2) |
Diode Test | ||
hFE Test | ||
Continuity Test | ||
Duty | ||
Data Hold | ||
