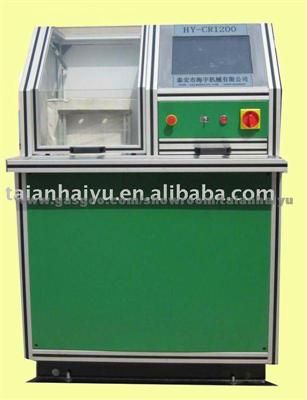

Image for HY-CRI200 High Pressure Common Rail Test Bench

HY-CRI200 High Pressure Common Rail Test Bench

    • Application: audi
    • Market Type:After Market
    • FOB Price: Inquiry For It?
    • Payment Terms: L/C, T/T
    • Samples: Charge
    • Minimum Order: 1Set/Sets
Contact Supplier no sign-up required

Quick Details

  • Place of Origin:

    China

  • Samples:

    Charge

  • Delivery Time:

    Within 10 Working Days After Getting Payment

  • Packing:

    Wood Package

  • Delivery Port:

    Qingdao

  • Max. Production Capacity:

    10sets Per Day

  • Export Ratio:

    81% - 90%

  • OE Experience:

    No

Product Name:HY-CRI200 High Pressure Common Rail Test Bench

HY-CRI200 High Pressure Common Rail Test Bench

Application

audi

Product Description:

Name and Model System Specification Details Remarks
HY-CRI200 High Pressure Common Rail Injector Test Bench Main Engine System 1. Quadrupole electric motor (380V): 5.5KW. Alpha frequency converter: 7.5KW2. The main frame is aviation aluminum structure and cast iron operating platform.
3. Its control type is automatically computer control and display by screen.
4. The accuracy of weighing oil digital readout (weighing transducer) is 0.1ml.
5. Its revolving speed range is 0~1500r/min (adjustable) (digital readout).		 Furniture Included
Oil Circuit System 1. The high pressure pump is BOSCH, CP3.3, max 200Mpa.2. Rail pipe is BOSCH.
3. The rail pipe is controlled by automatically closed cycle, and pressure display (accuracy±0.1Mpa) with overpressure protection.
4. Oil temperature (adjustable) is controlled automatically heated by heating pipe and radiated though radiator.
5. Its filtering type is secondary filter.
Electrical equipment 1. It has built-in electrical box and convert box.2. Short-circuit protection.
Data base It has more than 400 kinds of standard build-in data, which can be upgraded.
Testing fuel injector 1. It can test 1 fuel injector every time.2. It can test 6 fuel injectors at most in the same time (Price is extra).
3. The types it can test are BOSCH, DENSO, DELPHI, and SIEMENS.
Overall dimension Length: 1000mm, m, Height: 1430mm
Weight Net weigh: 400kg.
