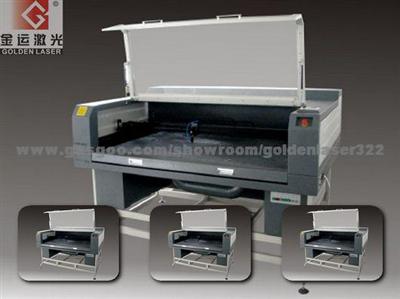

JG-160100 Carpet Professional Cutting Machine,Carpet Professional Laser Cutting Machine
Product Feature
1.It adopts thick Zinc-iron-alloy honeycomb working table
2.Double-decked strengthening table to ensure large area laser cutting is the same with small area cutting
3.Fast cutting speed,smooth cutting,same lighting,precise cutting,no burn-edge
4.Suitable for garment fabrics pieces cutting and cloths fast cutting
5.It can be optional equipped with conveyor working table and one or two laser heads can be selected according to different processing requirements
6.Cutting area is 1600mm*1000mmespecially for the door carpet,lift carpet and automobile carpet
Application Field
Suitable for variety of carpet fields.:
1 Commercial carpet : the catpets used in hotels, restaurants, office buildings, offices, wineshops, supermarkets, hospitals, schools, theaters,orphanages, nursing homes, station waiting halls, airport waiting halls, wharf langchuan halls,etc.
2 Industrial use carpet : the carpets used in aotomobile decorations, airport decorations, passenger ship decorations, train decorations ,etc.
3 Household carpet
Main Technical Parameter |
|
Laser type | CO2 Hermetic and detached laser tube |
Laser power | 65W 80W 100W for choice |
Cutting area | 1600mm×1000mm |
Cutting(no-load)speed | 0-30000mm/min |
Moving system | Offline control system, step motor |
Power supply | AC220V±5% / 50HZ |
Format support | AI,BMP,PLT,DXF,DST etc |
Standard collocation | Close loop water cooling system, mini air compressor, 550W exhaust |
Select collocation | High pressure blow magnetic valve and control board, assistant laser cutting head, conveyer working table, water chiller,servo moving system |
