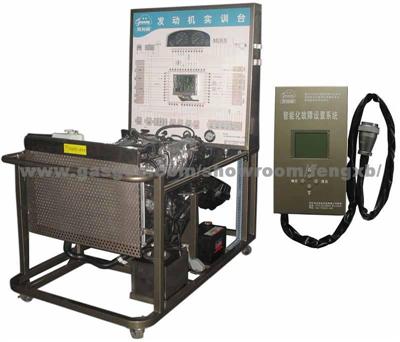

Product Name:Gas Engine for Toyota

Gas Engine for Toyota

Application

Toyota

Product Description:

OEM No/Model: FXB-B-1-A-Xxx

         Brief Introduction of product:
The testing platform based on the original electric gas engine can run the engine to start speed up, slow down the auto which gives us a real display of framework and work process of the engine. It is fit for teaching in junior and senior vocational school, liberall education school and training institutions in engine theory and service. The testing platform is easy and safe to operate with various functions.

Contain of structure:
Electrical control gas engine compartment,engineECU,Combination instrument,battery,battery master switch,Fuel tank,accelerator pedal of manual,date link connector,fuel pressure indicator,Vacuum pressure indicator,setting malfunction box of intelligent and so on.

Character:
1. Real gas engine display of framework and work process of the engine
2. Learners can compare circuits diagrams painted with the same color with the original engine in the testing platform to know and analyze the working theory of the controlling system.
3. The testing platform is installed with testing Terminal, to test signals of sensor, actuator and engine controlling unit, e.g.: resistance, voltage, current ,frequency signals.
4. The panel of testing platform is installed with meter, fuel Pressure Gauge, vacuum Pressure Gauge which display the change of engine speed, vehicle speed, the gear of automatic transmission, fuel injector pressure, Manifold Pressure.
5Testing platform is installed with date link connector which can be connected with decoder in the auto for special or common use. The platform can search the code of ECU, read and clear out fault code, read data stream, test the component, set the parameter, analyze wave.
6. (Collocated) The platform was collocated with setting of intelligent faults, as the characteristics below:
 A. It adopted the latest MCU technology, digital integrated circuits, with Color Liquid Crystal Display of 320*420 and it is easy to operate.
    B.It can set faults of cutting off the connection of any open circuit, line-to-ground short circuit
 and other faults in any point freely.
C.It can adjust setting of quantity and type of faults points according to usage requirement of the equipment.
D. Installed with communication port, and can be connected to computer to ensure to finish setting up faults and parameter and eliminating faults by using this software.
    E. Installed with network port and can be connected with other faults setting equipment to form a network. The main controlling machine will control the functions of faults setting, fault solving, parameter setting, remoter start, information feedback and assessment
    F. it is easy and convenient to update the software anytime to the latest version.

G.The testing platform is installed with accelerator pedal of manualwhich can speed up and slow down the auto and can control open degree of vavle.
H, The testing platform is equipped with chief switch, the shield of water tank and flywheel.
I,The base of the testing platform was sealed by steel framework, with plastic painted on the surface. It is very flexible with truckle equipment.

technique parameter:
Figuration dimension:1600mm*1000mm*1800mm (length*width*height)
Work power supply:12v direct current
Weight:500Kg
Fuel grade:according to the type of the engine
oil tank volume:20 L
working temperature:-4050
maintain time interval: 60days
