Y41 single C-Frame Hydraulic Machine for BYD

    • Application: BYD/Flyer(China);BYD/F3(C...
    • Market Type:After Market
    • Price: Inquiry For It?
    • Samples: Not Available

Quick Details

  • Place of Origin:

    China

  • Samples:

    Not Available

  • Sample Price:

    6500

  • Delivery Time:

    7

  • Max. Production Capacity:

    100

  • OE Experience:

    No

Product Name:Y41 single C-Frame Hydraulic Machine for BYD

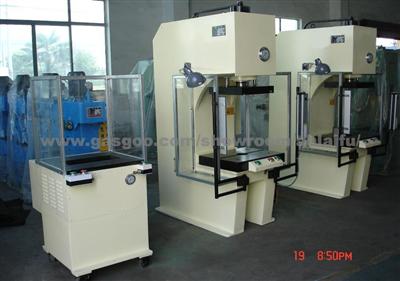

Y41 single C-Frame Hydraulic Machine for BYD

Application

BYD/Flyer(China);BYD/F3(China);BYD/F3R(China);BYD/F6(China);

Product Description:

Y41 single C-Frame Hydraulic Press

AccurL Open-gap, C-frame Presses, available in 12 tonnage ranges, from 6 tons to 300 tons. The AccurL line of presses is the broadest line of C-frame presses available anywhere. All AccurL presses are built for long service in multi-shift industrial production applications. The AccurL presses are designed using the latest engineering techniques to provide you with a more compact, faster press. We offer an unusually wide range of standard equipment, special features, accessories and options.

Features:

  • Heavy, welded frame provides maximum rigidity and minimum deflection for accurate parts and long tool life. Deep ribbing under the bed forms a stable mounting surface for tools and dies.
  • Guided ram with removable upper tooling plate. Several choices in guiding are offered, from single ram link to oversized 4-rod guiding. The removable tooling plate includes clearance holes for die mounting.
  • Dual Palm Button control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
  • PLC press control is flexible and safe. PLC controls allow for customized press cycles.
  • The press table is removable, making it quick and easy to drill and tap tool-mounting holes or resurface the table.
  • Adjustable proximity switches allows stroke adjustments in seconds.
  • Front mounted pressure control and gauge allow tonnage adjustment in seconds.
  • Selector switch modes of operation: jog (setup) and run (cycle).
  • Wide range of hydraulic systems to match your requirements.
  • Large reservoirs minimize the need for oil coolers.
  • Large daylight and throat depth to accommodate large dies.
  • Long stroke lengths are adjustable from about 1" to maximum.
  • Pressure and distance reversal systems are standard.

Options:

  • More daylight, stroke and throat.
  • Dwell timer and speed control.
  • Rotary index or shuttle table: for automated and semi-automated production.
  • Touch Screen control: simplifies multiple job setups.
  • T-Slots and mounting holes: custom designed for your tooling.
  • Light curtains: improved safety for press operation; can also be used for PSDI.
  • Automatic cycle operation.
  • Interface for auxiliary controls.
  • Special controls.
