Quick Details

• Place of Origin:

  Jiangsu, China (Mainland)

• Delivery Port:

  shanghai ningbo

• OE Experience:

  No

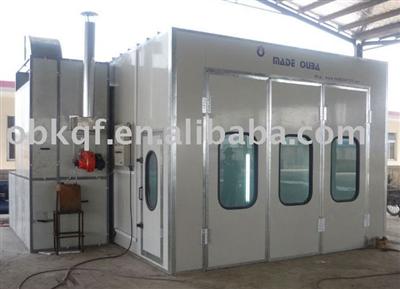

Product Name:Spray Booth

Spray Booth

Application

universal

Product Description:

G&P equipment have passed China Communication CCPC, Europe CE, UL certificates and so on.

STANDARD CONFIGURATION

1. Body Room

Wall panels

Total thickness of EPS insulation(Expanded Polystyrene) and powder-painted steel plate wall is 50mm.

Basement and Floor

Galvanized steel assemble, 2 rows of grilles with standing weight and 3 rows of indented plates.

Driving Ramp

2PCS indented plates

Personal door

1 fold with sight windows, pressure lock, 2000×780mm

Main door

3 fold with sight windows, floors with aluminum frame

2. Heating System

Frame

Aluminum forming with powder spray process

Intake fan

1pcs 7.5KW professional turbo fan

Exhaust pipe

1pcs 4m straight pipe; 1pcs 900  elbow; 1pcs 600 intake elbow; European flange

Smoke venting pipe

1pcs 4m straight pipe; 2pcs small elbow

Air damper

 Cylinder and connecting rod driving system to transfer spray paint to baking paint freely

Burner

RIELLO/G20

Heat exchanger

Heat-resistant stainless steel heat exchanger; heating cycle

3. Filter System

Ceiling filter

6 set filter; holding net installation model; Holder is made by aluminum and with surface powder spray treatment

Floor filter

2 set, installed horizontally

Prefilter

1 set M type filter structure

4. Control system

Electric cabinet

Main components are imported are good quality; With overheat, overload, phase-absence protecting; Motor starts directly.

Stop automatically

With timer to control heating time; System stops automatically

Constant temperature spraying;With constant temperature spraying paint function

Main power

17KW

5. Lighting system

Ceiling light

10 units×4pcs×40W= 40pcs×40W

Side light

8 units×2pcs×20w=16pcs×20w,installed horizontally

6. Environmental Protection Equipment

Environmental protecting filter: No

                      Optional: M type activated carbon or drawer type activated carbon filter
