Quick Details

• Place of Origin:

  Fujian, China (Mainland)

• Delivery Time:

  0

• Packing:

  Common packing or to request

• Delivery Port:

  Xiamen, China port

• OE Experience:

  No

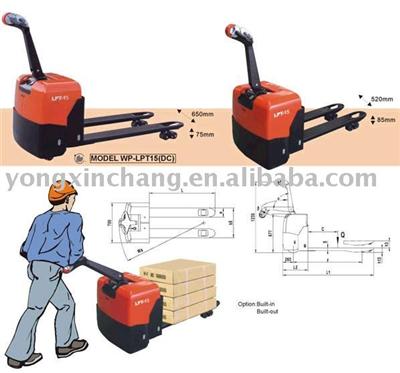

Product Name:Power Pallet Trucks Brand: XGMA, Baoli, Noble

Power Pallet Trucks Brand: XGMA, Baoli, Noble

Application

Auto

Product Description:

Power Pallet Trucks,manual truck;
1.Driving/mast /steering/engine gears
2.Brand: XGMA, Baoli, Noble..
3.Advanced techniques

Power Pallet Trucks,Manual Pallet Trucks,hand forklift truck,manual pallet truck, hand truck;

Our company manufactures and exports various accessories for forklift trucks, any demands do contact us for:

1. Products: forklift mast system, driving system, steering system, engine, gearbox,  torque converters,  frame, forks and tires/tyres....



2. Object: 1-20ton forklift trucks (electronic /diesel/gasoline engines)



3. Packing: wooden packing or pallet packing or as requests.



4. Services: offering repairs and maintenances for imported and China forklift trucks.



Identification1.2Model of manufacture  WP-LPT15(DC)1.3Power supply(electric,diesel, petrol,gas,mains electric)  electric1.4Type of operation(hand,pedestrian,stand on,rider seated, order picker) pedestrian1.5Capacity /rated loadQ Kg15001.6Load center distanceC mm
6001.8Load distance X mm 96310541.9Wheelbasey mm 12171310Weights2.1Weight(including battery)Kg2862.2Axle loadings laden
drive end/load endKg760/1026674/11122.3Axle loadings unladen
drive end/load endKg222/64226/60Wheels,
Chassis3.1Tyres(rubber, Vulkollan, pneumatic, polyurethane) polyurethane3.2Tyre size        drive endmmF252x893.3Tyre size        load endmmF84x70/F84x93F74x70/F74x933.4Castor wheels(dimensions)  F100x403.5Wheels, number(x=drive wheel)drive end/load end 1x -2/4 or 1x -2/23.6Track width(front)        drive endb10mm4903.7Track width(rear)        load endb11mm360490Basic Dimensions 4.4Lift heighth3 mm1204.9Tiller height in neutrality position

h14mm
12354.15Fork height loweredh13mm85754.19Overall length l1 mm 159016604.20Length to front face of fork l2 mm 4404.21Overall width b1 mm 7004.22Fork dimensions s/e/l mm 47/160/115047/160/12204.25Overall fork widthb5 mm5206504.32Floor clearance, center of wheelbase m2 mm 34244.34Working aisle with 800x1200 pallet lengthwise Ast mm 194419764.35turning radius Wa mm 14801550Performance Data 5.1Travel Speed        laden/unladenkm/h5.0/5.25.2Lifting speed        laden/unladenmm/s27/355.3Lowering speed     laden/unladenmm/s42/275.8Gradeability       laden/unladen%5/85.10Brakes Electric-magneticE-Motor6.1Drive motorkw1.06.2Lifting motor kw0.86.3Battery acc. To BS, no 1)  no6.4Battery voltage, norminal capacity K5 1) V/Ah2x12/806.5Battery weight +/-5% Kg48 Battery dimensions l/w/h 1) mm260/170/230Others8.1Type of drive control MOSFET Control 8.4Sound level, at driver's ears dB(A)<70 Turning angle ?TD> 205

*)Load section lifted/lowered +55mm
**)Diagonal according to VDI+204mm
