Quick Details

• Place of Origin:

  China

• Samples:

  Charge

• Sample Price:

  267

• Delivery Time:

  7 working days

• Packing:

  by carton

• Delivery Port:

  Guangzhou

• Max. Production Capacity:

  10000pieces

• Export Ratio:

  71% - 80%

• OE Experience:

  No

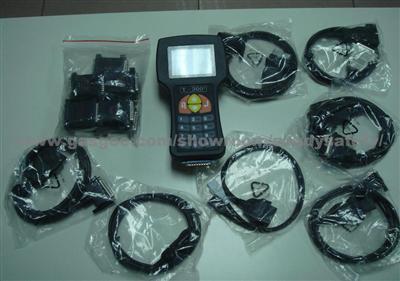

Product Name:T300key Programmer Car Scanner

T300key Programmer Car Scanner

Application

Benz/ Bmw

Product Description:

Description

T300 Key Programmer

It is the latest version, which is 9.2, add more cars than old version.

Use for key programming. More cars than any other transponder machine.

Function introduces of T300 chip key decoder

1. Read the vehicle malfunction code

2. Clear the vehicle malfunction code

3. Read the system data stream

4. Read IMM0/ECU ID

5. Fetch the machinery key code

6. Clear vehicle key memory

7. Program new key

8. Read vehicle key login password

9. Distinguish types of ECU

10. ECU-IMMOBILISER programme

11. Read EKA password

12. Programme new EKA password

13. Programme telecontrol implement

Package contains:

1. Honda-16 Adaptor

2. SUZUKI Adaptor

3. MITSUBISHI Adaptor

4. OBDII-16 Adaptor

5. OBDII-16 POWER Adaptor

6. Audi 2+2 Adaptor

7. Honda-3 Adaptor

8. Nissan OBDII

9. Nissan 14

10. Nissan adaptor

11. Chrysler-1 adaptor

12 Chrysler-2 adaptor

13. GM-12 adaptor

14. OBDII TO Benz SPRINTER

Audi-VW Transponder key matching with 5 digits Login Code

Procedure for adding transponder keys to vehicles with separate Immobilizer box:

(Audi to year 97, Golf 3, Passat B4, Transporter, Lupo, Sharan)

Switch ignition ON with new key. Select: Immobilizer -> Login

Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).

For example, if your Login is 1234, enter 01234.

Save

Go to Adaptation

Enter 01 in "Channel Number"

Enter

The "Stored Value" is the number of keys currently matched.

Enter number corresponding to the total number of keys to be matched, - for ex 2;

Enter -> Save

Switch ignition off and remove key

Insert next key to ignition and switch ignition on again

Wait 15 sec. Repeat this step with each key until all keys have been matched.

Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation

Enter 00 in "Channel Number"

Enter 0 and Save. This will learn ECU with Immobiliser.

Procedure for adding transponder keys to vehicles with Immobilizer in the instrument cluster:

(Audi from year 97, Golf 4, Passat B5, B6 )

Switch ignition ON with new key. Select: Instrument -> Login

Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).

For example, if your Login is 1234, enter 01234.

Save

Go to Adaptation

Enter 21 in "Channel Number"

Enter

The "Stored Value" is the number of keys currently matched.

Enter number corresponding to the total number of keys to be matched, - for ex 2;

Enter -> Save

Switch ignition off and remove key

Insert next key to ignition and switch ignition on again

Wait 15 sec. Repeat this step with each key until all keys have been matched.

Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation

Enter 00 in "Channel Number"

Enter 0 and Save. This will learn ECU with Immobilizer
